Use and maintenance manual SHARK 282
Angled cuts 45° to the right

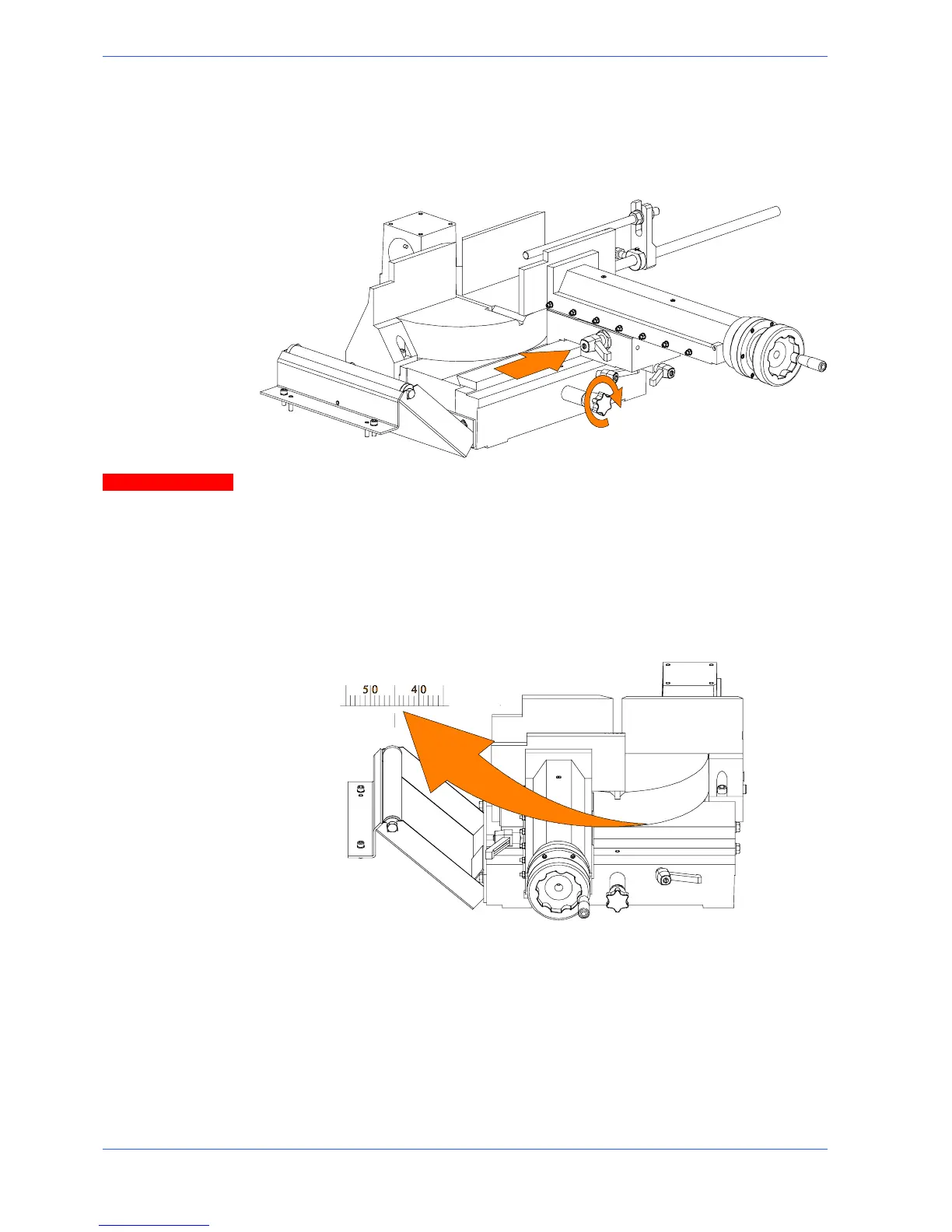

" Make sure the vice is positioned to the right of the 0° cutting slot.
" slackenthelockingleverasshowninthefigurebelow;
" position the vice to the right and lock the lever.
When positioning the vice to the left or right, make sure the moving jaw is
beyond the 0 ° cutting slot to avoid any risk of collision with the blade
downstroke.
Following the same procedure described above for 45° cuts to the left, now
position the head for 45° cuts to the right:
" slacken the turntable lock/release lever;
" pull the eccentric pin knob towards you (0° reference stop) and rotate slightly
to raise it;
" swing the head from left to right until it is positioned at the required angle, as
indicated by the graduated scale on the turntable;
" relock the turntable lock/release lever;
" make the cut in the required operating mode, following the preliminary safety
instructions set out in this chapter.
Attention
