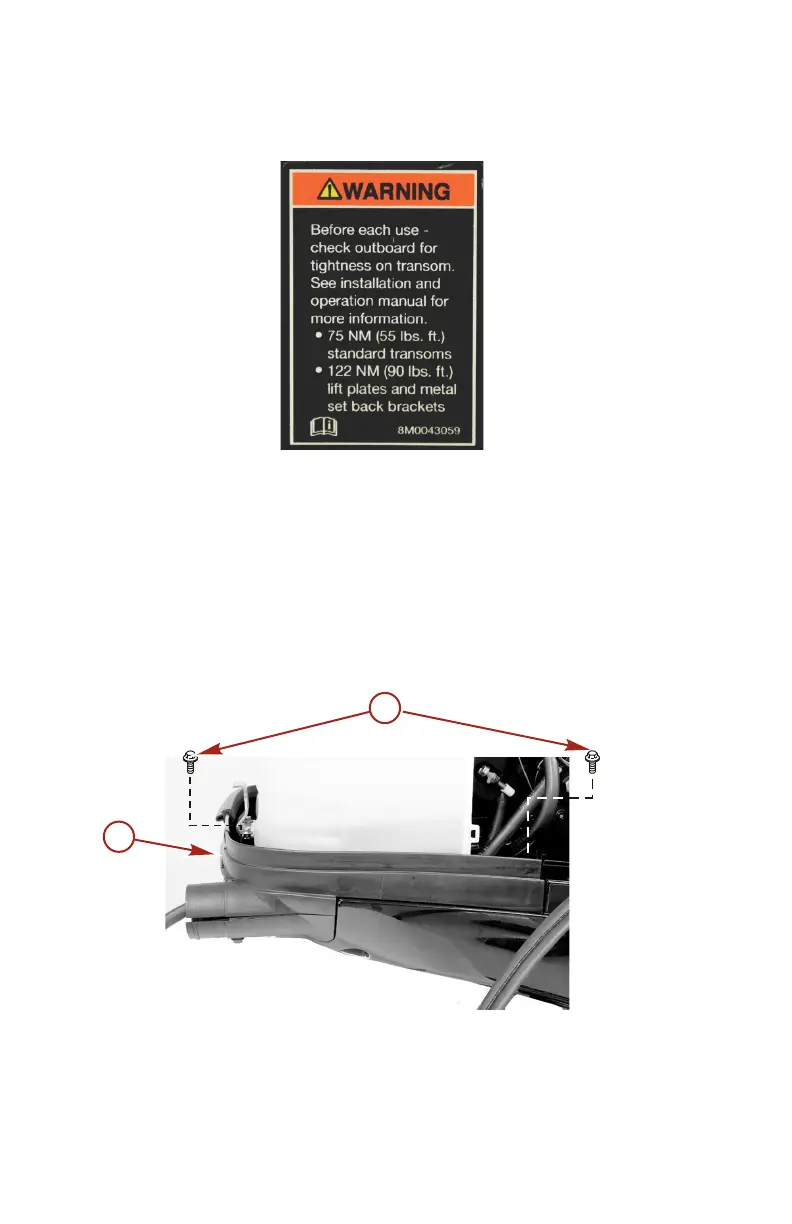

A decal on the transom bracket reminds the owner to check the fasteners
securing the outboard to the transom before each use.
Decal on the transom bracket
Electrical, Fuel Hose, Flush Hose, and Control Cables
FRONT COWL GROMMET
NOTE: Sufficient slack must exist in wiring, battery cables, and hoses that are
routed between the grommet and engine attachment points to relieve stress
and prevent hoses from being kinked or pinched.
1. Pull up the cowl seal. Remove the access cover from the bottom cowl.
a - Access cover
b - Screws
OUTBOARD INSTALLATION
eng 133
