INSTALLATION

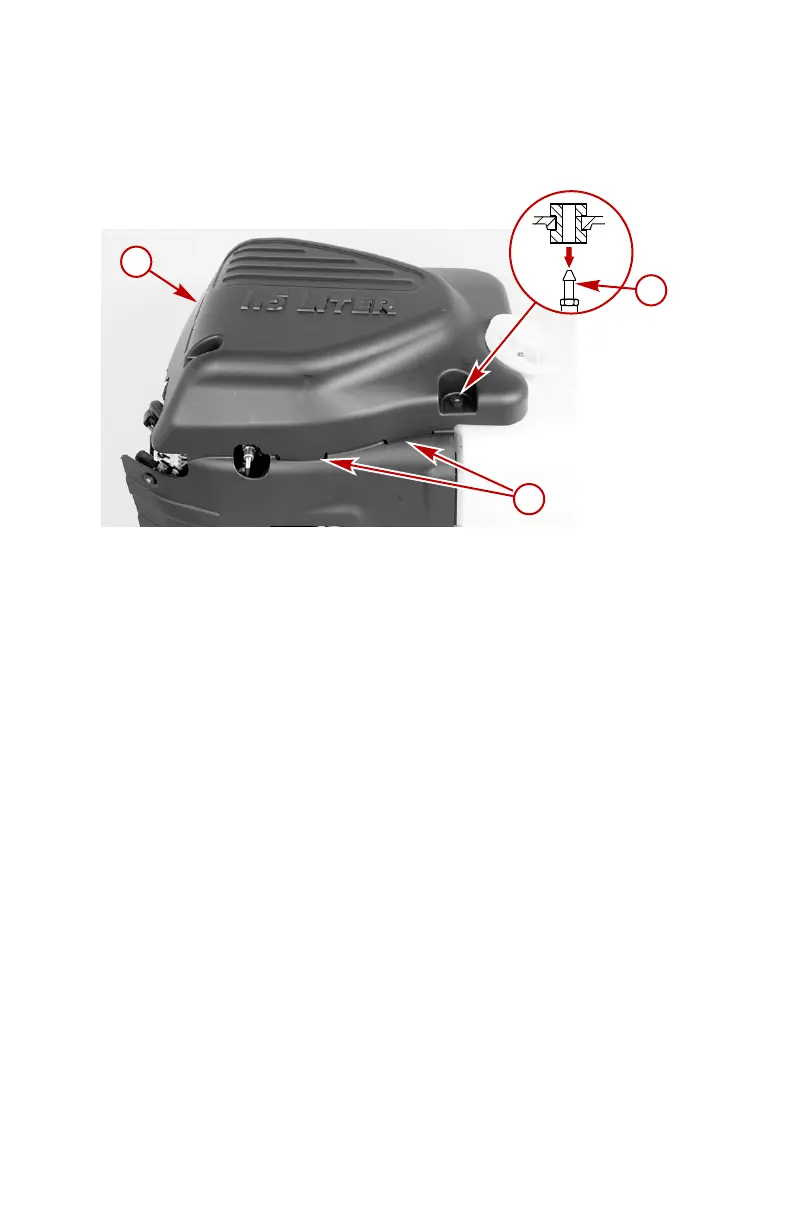

Position the cover onto the three mounting pins. Insert the tabs into the slots in
the side panel and push the cover down onto the mounting pins.
a - Flywheel cover
b - Mounting pins
c - Tabs
Side Panel Removal and Installation
REMOVAL
Pull the side panel off the three mounting pins.
c
a
b
23754
MAINTENANCE
eng 79
