A decal advising against using deep cycle batteries and wing nuts should be
placed on or near the battery box for future service reference. One 5/16 in. and
one 3/8 in. hex nut is supplied per battery for wing nut replacement. Metric hex
nuts are not supplied.
54395
Place decal on or near battery box for future
service reference. Included with the engine
rigging components are 5/16" and 3/8” hex
nuts to be used for battery terminal wing nut
replacement. Metric hex nuts must be obtained
locally.
8M0085862
Refer to the outboard owner’s manual for
battery requirements.
Battery cable size and length is critical.
Refer to engine installation manual for
size requirements.
NOTICE
IMPORTANT:
DO NOT USE DEEP CYCLE BATTERIES!
13.5Nm (120 lb-in.)
DO NOT
USE
WINGNUTS

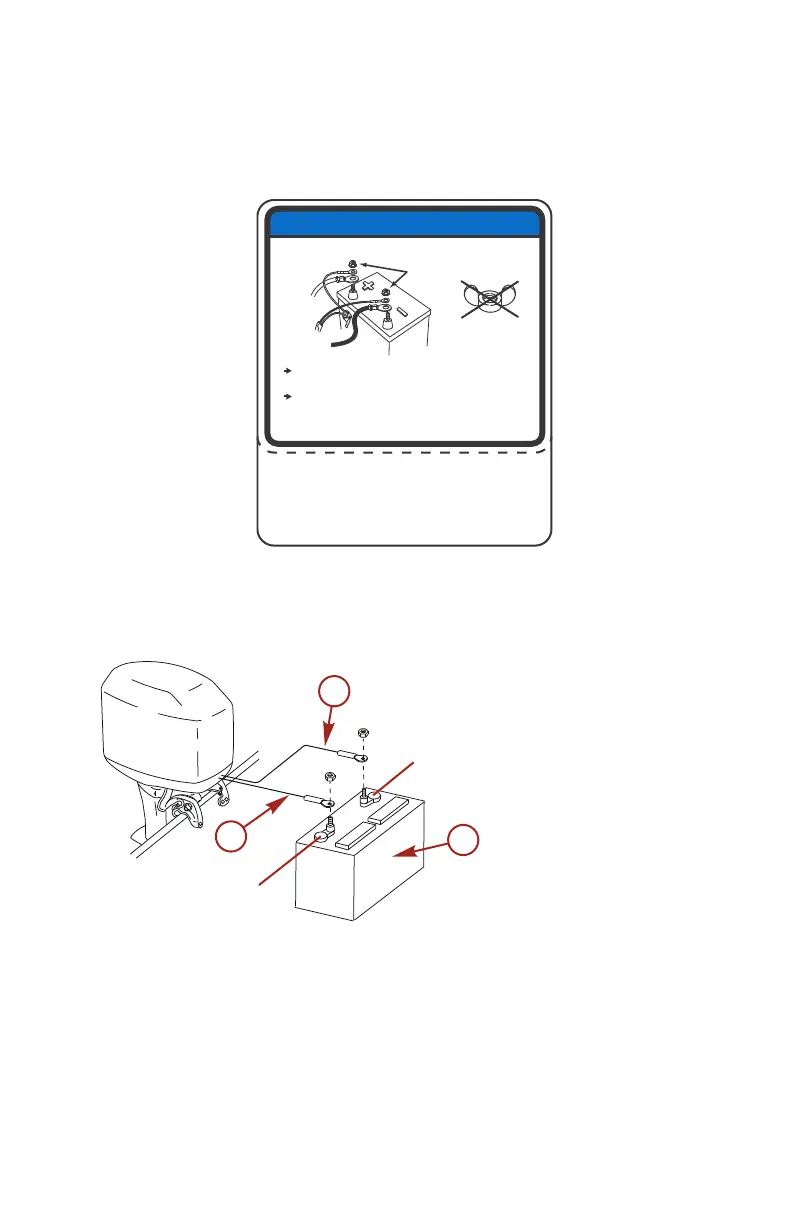

BATTERY CABLE CONNECTIONS
Single Outboard
a - Red sleeve ‑ positive
(+)
b - Black sleeve ‑
negative (–)
c - Cranking battery
OUTBOARD INSTALLATION
eng 137
To Next Page
