Swivel Bracket Removal
IMPORTANT:
This procedure assumes the following prerequisite procedures have been completed:
1. Powerhead/driveshaft housing/gearcase assembly removed from the clamp bracket/swivel bracket/steering arm assembly.
Refer to Powerhead/Midsection Assembly Separation.
2.
Steering arm removed from the swivel bracket. Refer to Steering Arm Removal.
3.
Power tilt unit removed from the swivel bracket. Refer to Power Tilt Removal.
To remove the swivel bracket:

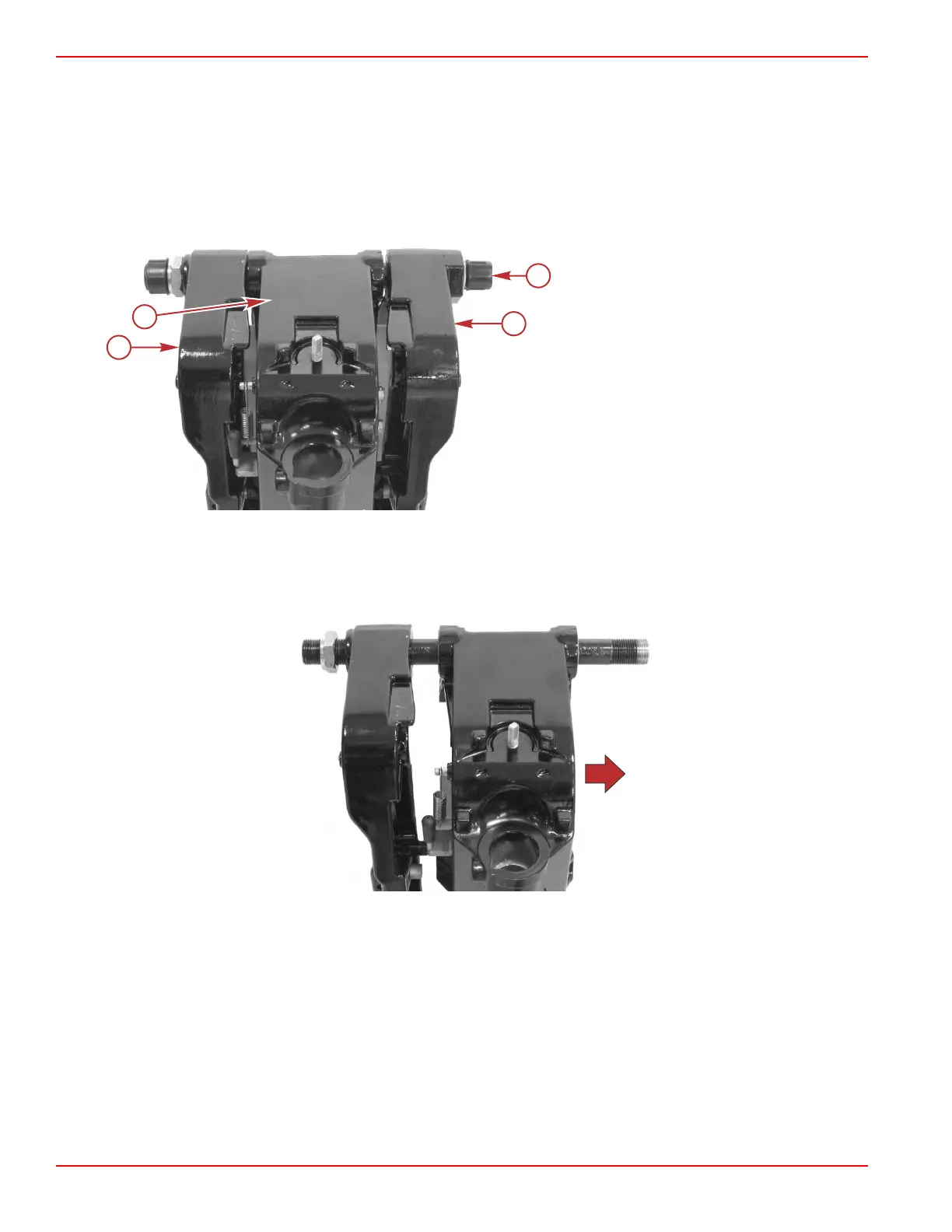

1. Remove the starboard side nut securing the tilt tube.
a - Port clamp bracket
b - Swivel bracket
c - Tilt tube with cap and nut
d - Starboard clamp bracket
2. Partially remove the tilt tube from the port clamp bracket.
3.
Remove the starboard ground wire.
4. Remove the starboard clamp bracket.
5. Remove the swivel bracket.
Swivel Bracket Inspection
1.
Remove the bushings from the swivel bracket.
2. Inspect for wear. Replace if necessary.
3. Clean the swivel bracket.
4. Apply 2‑4‑C with PTFE to the bushings.
Clamp/Swivel Bracket and Driveshaft Housing
Page 5A-32 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
