Propeller Shaft Assembly
1.

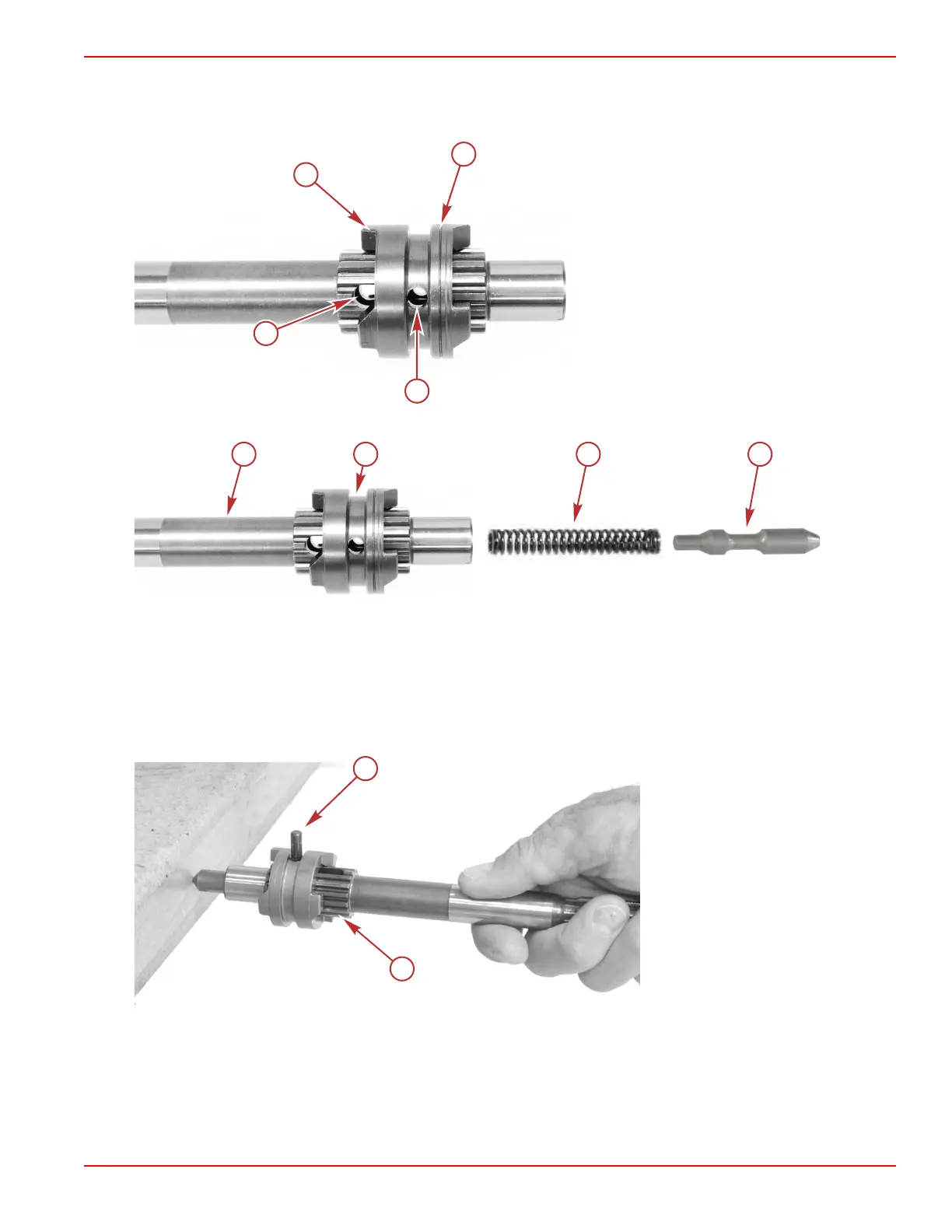

Slide the clutch onto the propeller shaft with the ring on the clutch facing toward the forward gear. Ensure the hole in the
clutch aligns with the slot in the propeller shaft.
a - Clutch
b - Ring faces toward forward gear
c - Cross pin hole
d - Slot
2. Install the clutch spring and cam follower into the propeller shaft.
a - Propeller shaft
b - Clutch
c - Clutch spring
d - Cam follower
3. Compress the cam follower against a hard surface while aligning the clutch pin hole with the slots in the propeller shaft.
4.
Insert the clutch cross pin through the clutch and propeller shaft until the clutch pin is flush with the clutch surface.
a - Clutch pin
b - Propeller shaft
5. Install the thrust washer into the propeller shaft.
Gear Housing (2.15:1)
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 6A-31
