Mercury 175 Verado User Manual

FEATURES AND CONTROLS
67

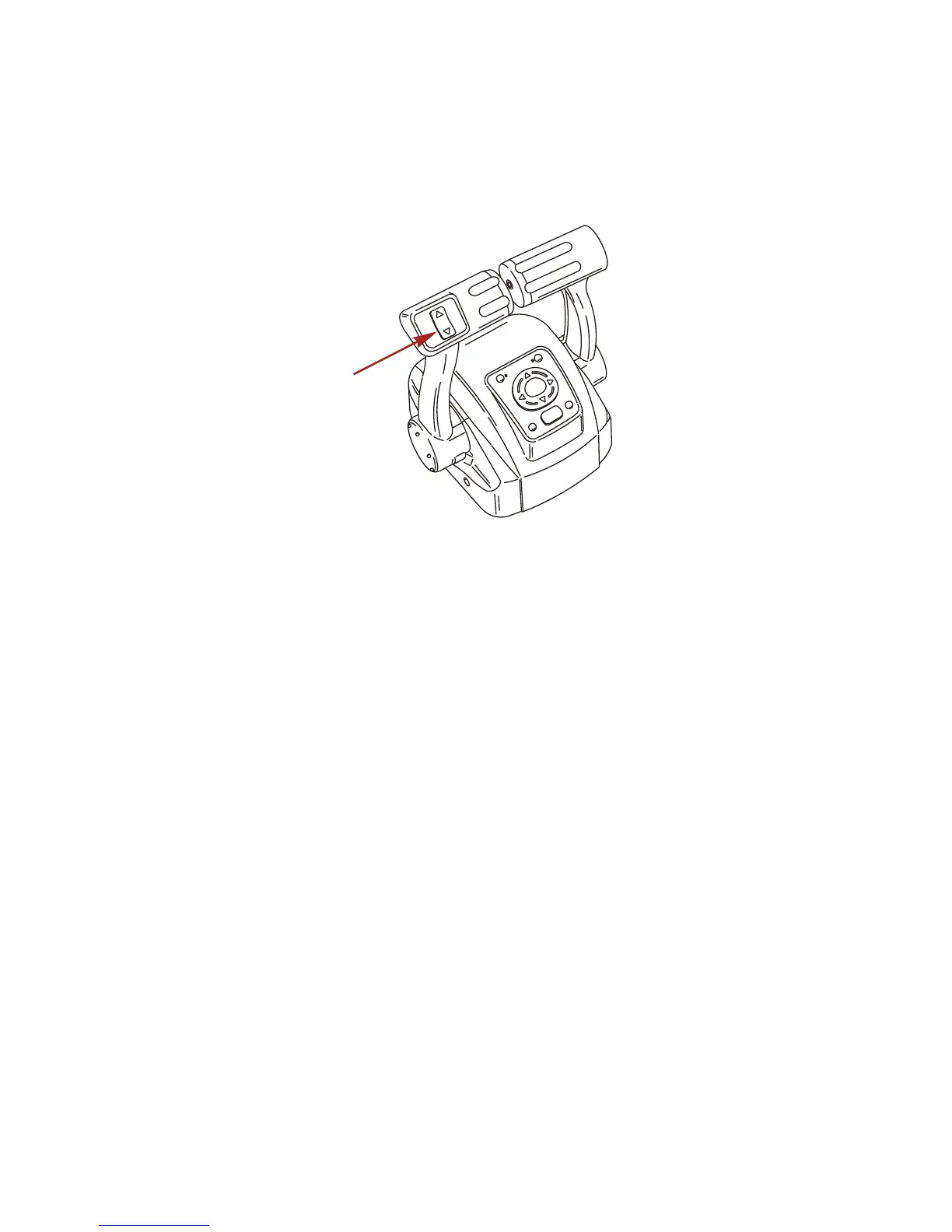

TRIM SWITCH AND KEY PAD FEATURES
1. Trim switch (if equipped) - Operates the trim for all engines.
An accessory trim switch panel is required for trimming
engines individually.
B
O
T
H
N
E
U
T
R
A
L
S
E
L
E
C
T
A
C
T
I
V
E
O
N
L
Y
T
H
R
O
T
T
L
E
S
T
A
T
I
O
N
S
E
L
E
C
T
S
Y
N
C
13853
2. Throttle only/station select button - Allows the boat operator
to increase engine RPM for warm-up, without shifting the
engine into gear. To engage throttle only, move the control
handle into the neutral position. Press the throttle only button
while moving the control handle ahead to the forward detent.
The horn will sound once and the neutral light will start
flashing. The horn will sound twice when throttle only is
engaged. Advance throttle to increase engine RPM. To
disengage, return control handle to neutral position and press
the throttle only button. Engine RPM is limited to prevent
engine damage. Pressing the station select button at an
inactive helm initiates a helm transfer. Refer to Helm
Transfer.
3. Arrow trackpad - Navigates through System View on-screen
function messages.
4. Select button - Selects System View on-screen options and
confirm data entries. Holding the select button for two seconds
will pause the slide show if selected in Favorites. Holding the
select button for three seconds will activate the reset data
function (except when in the slide show function). Holding the
select button for five seconds or more will bring up the Home
page.

Mercury 175 Verado Specifications

General

Displacement	2.6L
Horsepower	175 HP
Steering	Electro-hydraulic power steering
Gear Ratio	1.85:1
Cylinders	6
Fuel System	Electronic Fuel Injection (EFI)
Full Throttle RPM Range	5800-6400 RPM
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20" or 25"
Starting	Electric
Recommended Fuel	87 Octane
Engine Type	4-Stroke
Alternator Amp	70 Amp
