Mercury 225 OptiMax DTS - DTS Wiring - Single Engine; PANEL CONTROL

200/225 OPTIMAX DTS
90-10234050 Page 29 / 42

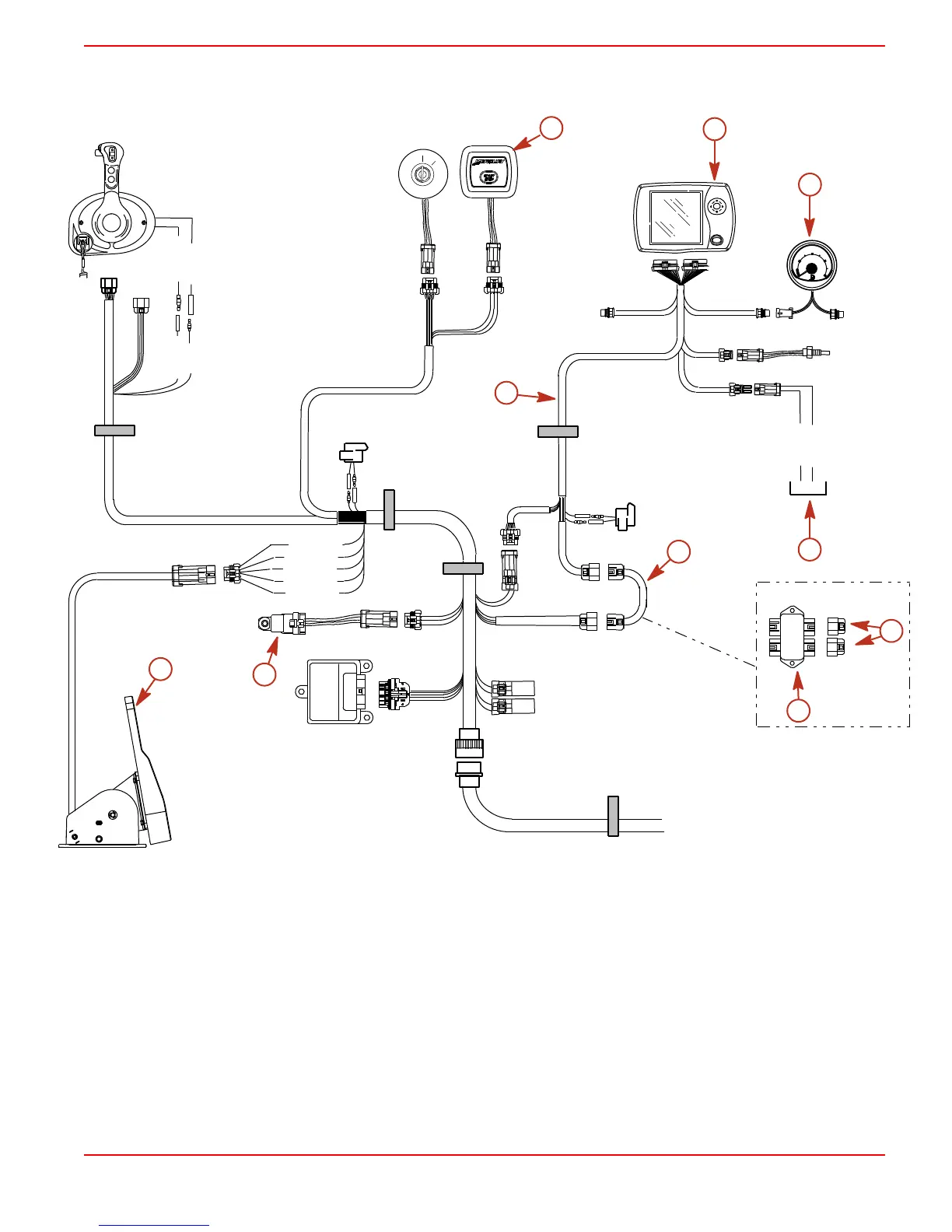

DTS Wiring - Single Engine
PANEL CONTROL
a
b
c
3718
WHITE
BLUE
BLK/ORG
PUR/YEL
GRN/YEL
GRN/ORG
GRN/RED
BLK/YEL
BLK/YEL
BLK
BLK
OFF
ON
e
f
g
h
i
j
d
-
+
a - Start/stop switch (optional)
b - SmartCraft System View (optional)
c - SmartCraft Link Gauge (optional)
d - GPS connection
e - Displace harness
f - Cable adaptor (male to female)
g - Weather caps
h - Junction box (optional)
i - Accessory power relay (optional)
j - Foot throttle (optional)
