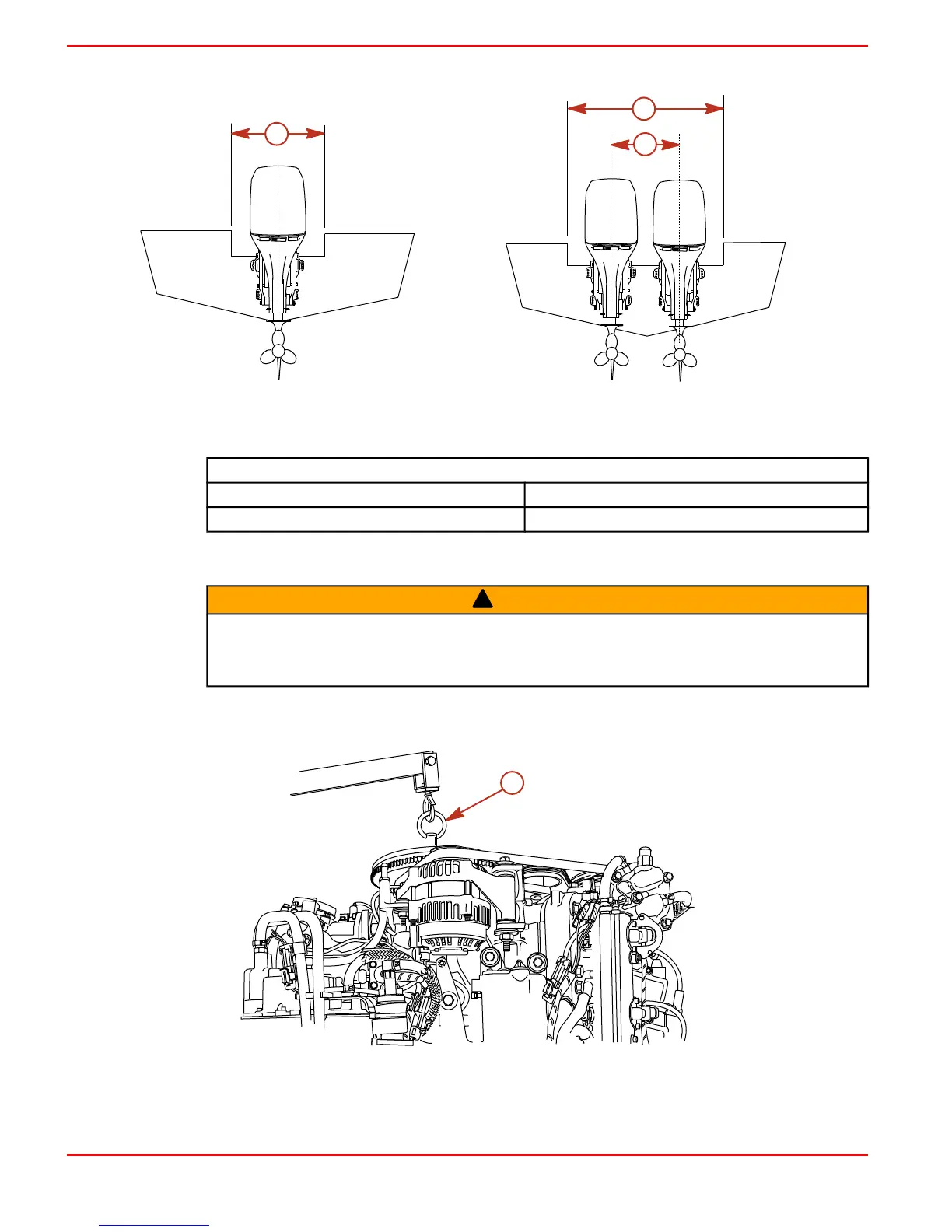

Installation Specifications
a - Minimum transom opening
b - Engine center line for dual engine - 66.0 cm (26 in.)
Minimum Transom Opening
Single engine 99.0 cm (39 in.)
Dual engine 165.0 cm (65 in.)
Lifting the Outboard
WARNING
Avoid possible serious injury or death. Before lifting the outboard, verify that the lifting
ring is threaded into the flywheel for a minimum of five turns and that the hoist has the
correct lifting capacity for the engine weight.
1. Remove the cowl from the outboard.
2. Thread the lifting eye into the flywheel hub for a minimum of five turns.
a - Lifting eye
