Mercury 225 OptiMax DTS User Manual

200/225 OPTIMAX DTS
90-10234050 Page 9 / 42

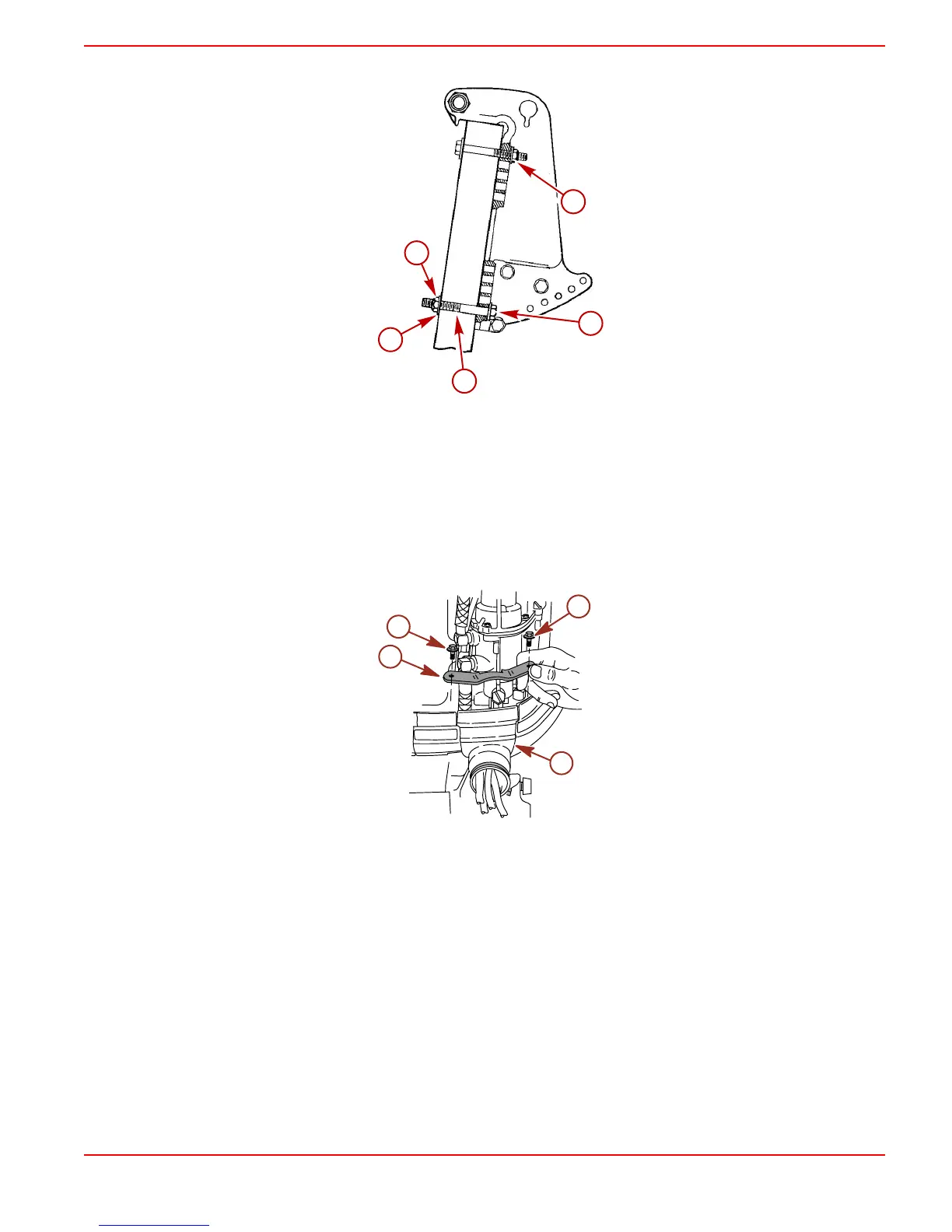

4. Fasten outboard with provided mounting hardware.
3729
a
b
c
d
e
a - Flat washer (4)
b - 1/2 in. diameter bolt (4)
c - Shank of bolt
d - Locknut (4)
e - Flat washer (4)
Front Clamp Assembly
Removal
Remove two screws with retainer and open the front clamp.
a
a
b
c
3765
a - Screws (2)
b - Retainer
c - Clamp
Installation
IMPORTANT: Sufficient slack must exist in engine wiring harness battery cables, fuel
hose, and oil hoses between clamp and engine attachment point, to relieve stress and
prevent hoses from being kinked or pinched.
