Installing Outboard

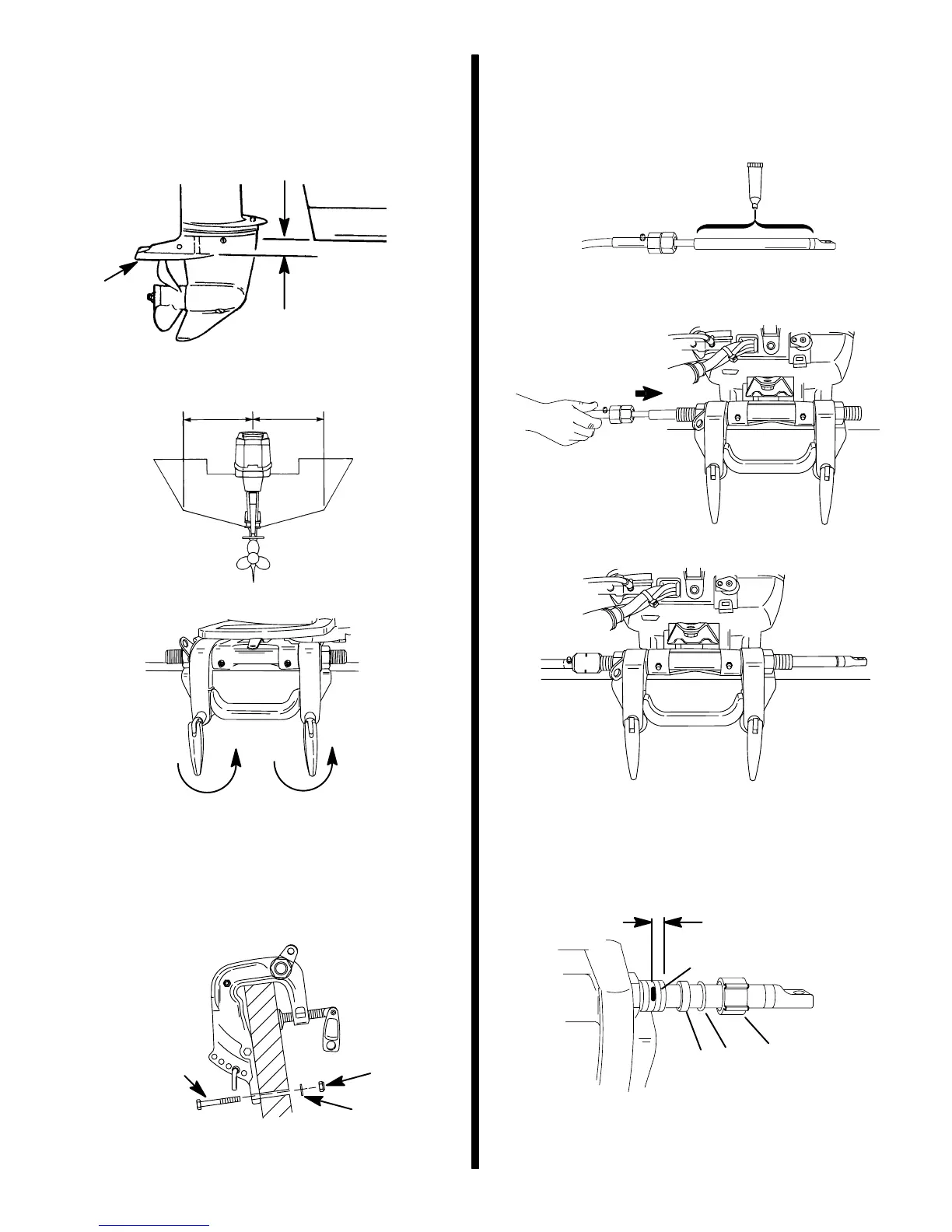

1. Measure the transom height of your boat. The
boat bottom should be aligned or be within 1 in.
(25mm) above the anti-ventilation plate (a) of the
outboard.
0-1in.
(0-25mm)
a
a - Anti-Ventilation Plate
2. Place outboard on center line of transom.
3. Tighten transom clamp handles.
4. To prevent loss of outboard overboard, fasten
outboard by drilling two 5/16 in. (7.9 mm) holes
through the transom using transom clamp holes
as a template. Fasten with two bolts, flat washers
and locknuts. Use a marine waterproofing sealer
in holes and around bolts to make the installation
water tight.
c
b
a
a - Bolts (2)
b - Flat Washers (2)
c - Locknuts (2)
Steering Cable
STARBOARD SIDE ROUTED CABLE
1. Lubricate the entire cable end.
a
a - Quicksilver 2-4-C Marine Lubricant with Teflon
2. Insert steering cable into tilt tube.
3. Torque nut to 35 lb. ft. (47.5 N·m).
Steering Cable Seal
1. Mark tilt tube 1/4 in. (6.4 mm) from end. Install
seal components.
1/4 in. (6.4mm)
a
c
b
d
a - 1/4 in. (6.4 mm) Mark
b - Plastic Spacer
c - O-Ring Seal
d - Cap
To Next Page
