- 4 -

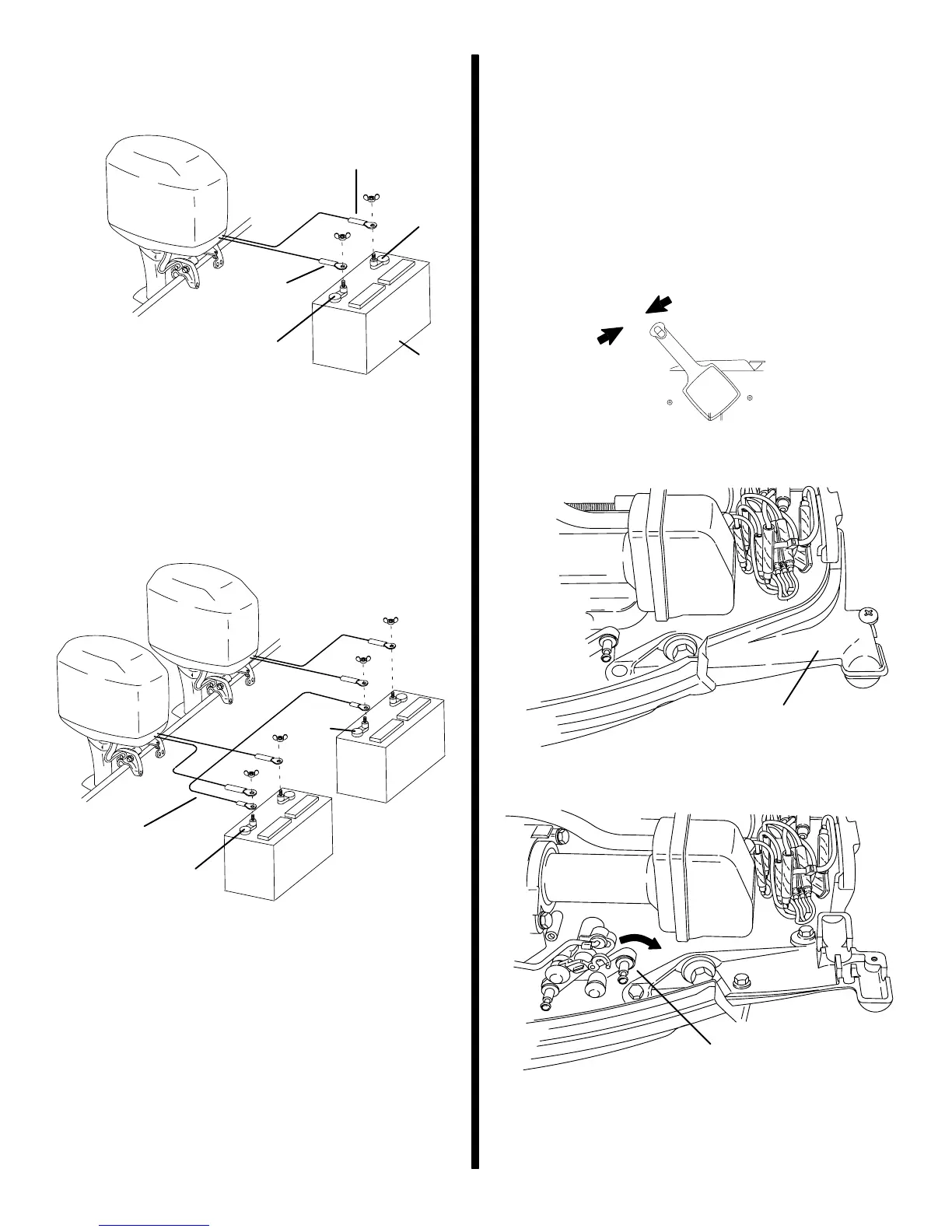

Battery Cable Connections

SINGLE OUTBOARD

(+)

(–)

a - Red Sleeve (Positive)

b - Black Sleeve (Negative)

c - Starting Battery

DUAL OUTBOARD

1. Connect a common ground cable (wire size same

as engine battery cables) between negative (–)

terminals on starting batteries.

(–)

d - Ground Cable (Same Wire Size As Engine Battery Cable –

Connect Between Negative (–) Terminals

Shift and Throttle Cable

Install cables into the remote control following the

instructions provided with the remote control.

NOTE: Install the shift cable to the engine first. The

shift cable is the first cable to move when the remote

control handle is moved out of neutral.

Shift Cable Installation

1. Position remote control into Forward gear.

2. Remove Cover.

a - Cover

3. Shift outboard into forward gear.

a - Rotate Shift Arm Forward
