Mercury 50 User Manual

GENERAL INFORMATION
18

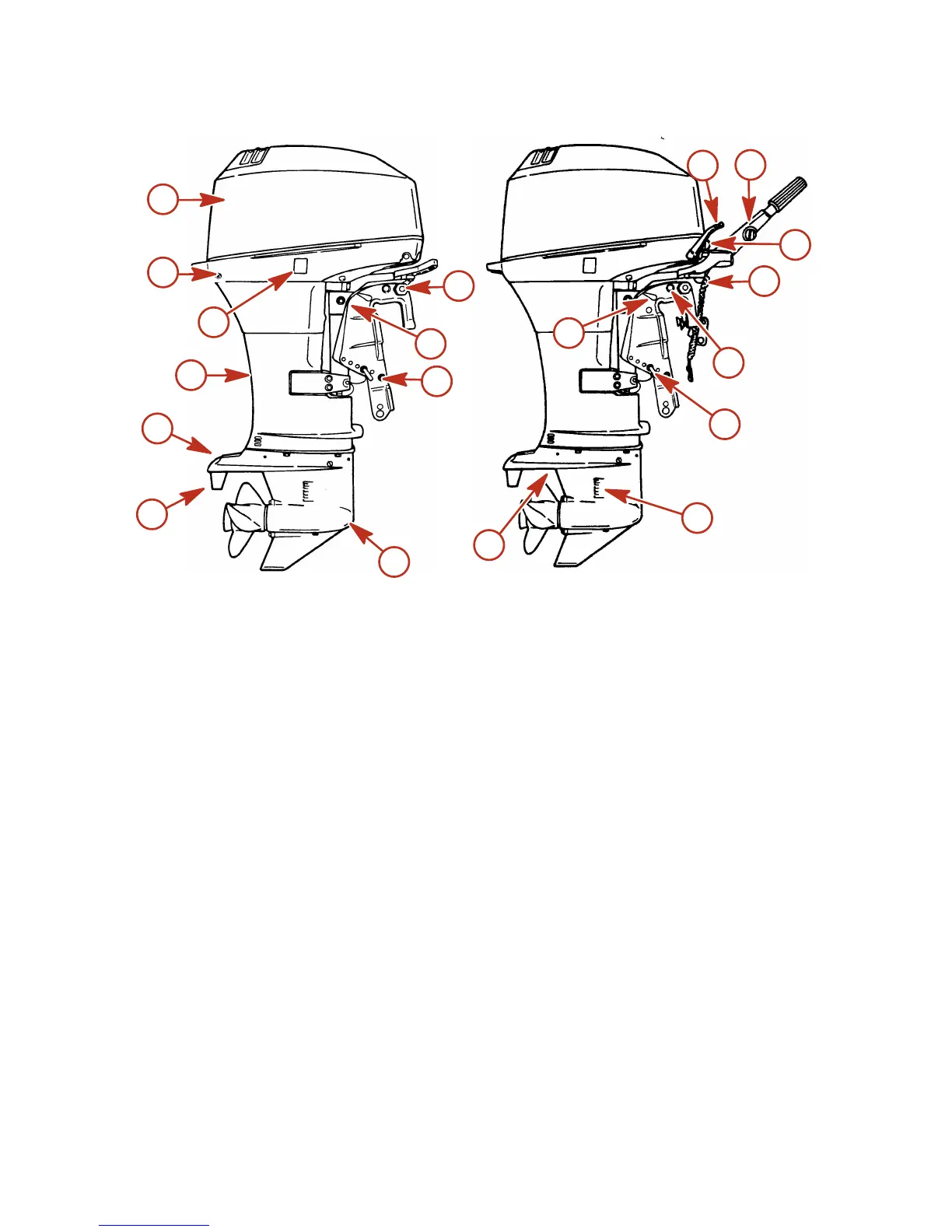

Component Identification
3067
a
b
d
e
f
g
h
i
j
k
l
m
n
p
q
c
o
r
s
a - Top cowl
b - Water pump indicator hole
c - Auxiliary tilt switch
d - Driveshaft housing
e - Anti-ventilation plate
f - Trim tab
g - Gearcase
h - Transom brackets
i - Steering friction adjustment (non-tiller
handle models)
j - Tilt lock lever
k - Secondary cooling water intake
l - Shallow water drive lever (non-power trim)
m - Shift handle
n - Throttle friction adjustment knob
o - Lanyard stop switch
p - Steering friction adjustment lever (tiller handle
models)
q - Tilt support pin
r - Primary cooling water intake
s - Tilt pin

Mercury 50 Specifications

General

Horsepower	50 hp
Cylinders	3
Steering	Remote
Starting	Electric
Displacement	995 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Alternator Output	18 amp
Shaft Length	20" / 508 mm
Dry Weight	112 kg
Engine Type	4-Stroke
