Mercury 50 User Manual

FEATURES & CONTROLS
35
ob00611
a

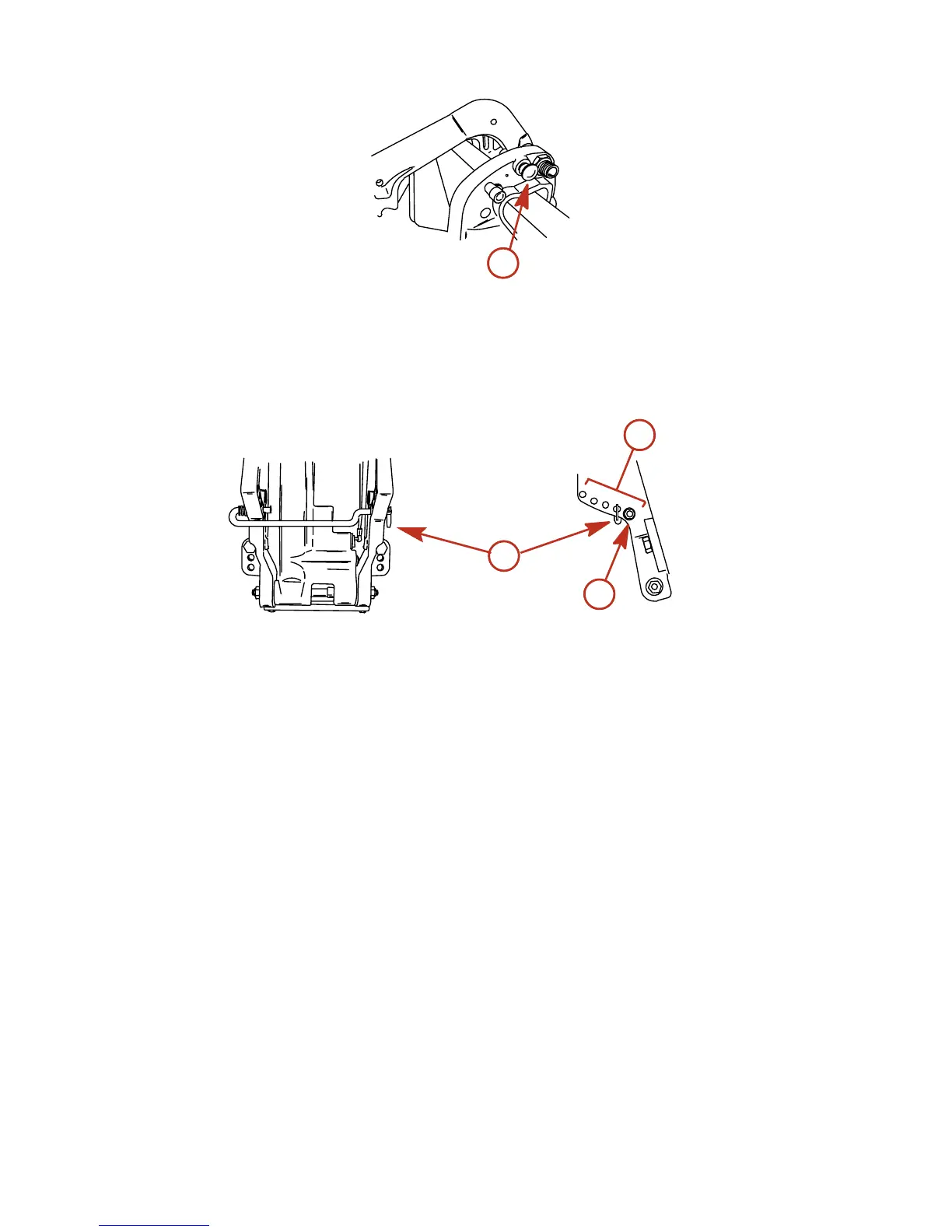

a - Tilt support pin
Operating Angle Adjustment
The transom brackets have five holes for adjusting the operating angle (forward stop movement) of the outboard.
Tilt stops are installed for adjustment in the first hole. Use tilt pin provided for adjustments in the remaining four
holes. Remove tilt pin when using the tilt stops.
ob00612
a
b
c
a - Transom bracket holes
b - Tilt stops
c - Tilt pin
Adjust the operating angle of the outboard so that the outboard runs perpendicular to the water when the boat is
at full speed.
Arrange passengers and load in the boat so the weight is distributed evenly.

Mercury 50 Specifications

General

Horsepower	50 hp
Cylinders	3
Steering	Remote
Starting	Electric
Displacement	995 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Alternator Output	18 amp
Shaft Length	20" / 508 mm
Dry Weight	112 kg
Engine Type	4-Stroke
