Mercury 50 User Manual

MAINTENANCE
64
N
ob00351
NN
3107

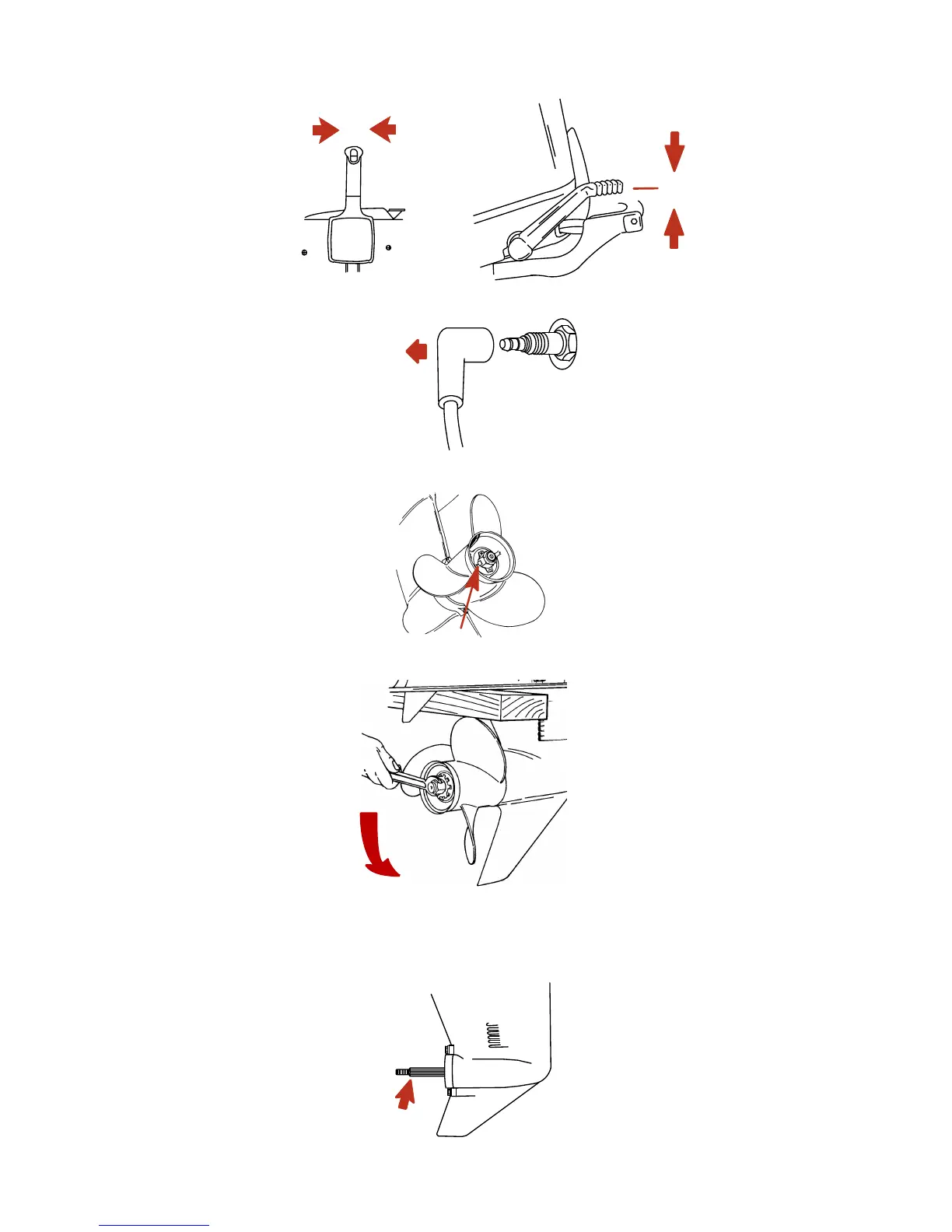

2. Remove the spark plug leads to prevent engine from starting.
ob00375
3. Straighten the bent tabs on the propeller nut retainer.
ob00376
4. Place a block of wood between gearcase and propeller to hold propeller and remove propeller nut.
ob00377
5. Pull propeller straight off shaft. If propeller is seized to the shaft and cannot be removed, have the propeller
removed by an authorized dealer.
6. Coat the propeller shaft with Quicksilver or Mercury Precision Lubricants Anti-Corrosion Grease or 2-4-C with
Teflon.
ob00378

Mercury 50 Specifications

General

Horsepower	50 hp
Cylinders	3
Steering	Remote
Starting	Electric
Displacement	995 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Alternator Output	18 amp
Shaft Length	20" / 508 mm
Dry Weight	112 kg
Engine Type	4-Stroke
