CYLINDER HEAD
Page 4A-22 90-857138R1 MAY 2000

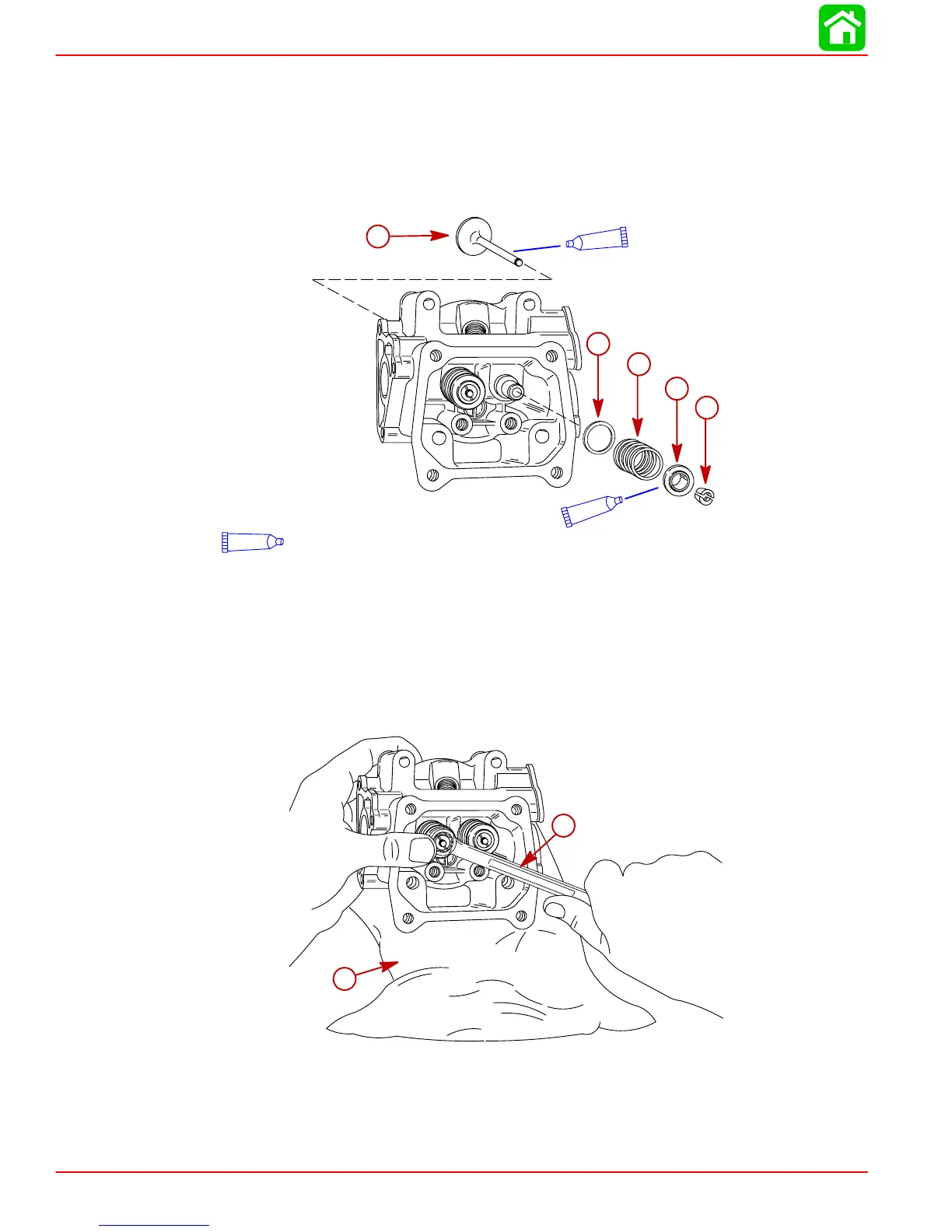

Cylinder Head Reassembly
IMPORTANT: Reassemble valve train components in their original location.
1. Install valves, lower seats, springs,spring retainers and keepers.
NOTE: Compress valve springs using a suitable box end wrench.
110
4-Stroke Outboard Oil (92-828000A12)
57246
a
b
c
d
e
110
110
a-Keepers (2) per Valve
b-Valve Spring Retainer
c-Valve Spring
d-Valve Spring Seat
e-Intake Valve
2. Place a clean rag under the head to support the valves. Use a suitable box end wrench
to compress springs while installing valve keepers.
57338
a
b
a-Box End Wrench
b-Clean Rag
To Next Page
