Mercury 6 SERIES User Manual

CYLINDER HEAD
90-857138R1 MAY 2000 Page 4A-23

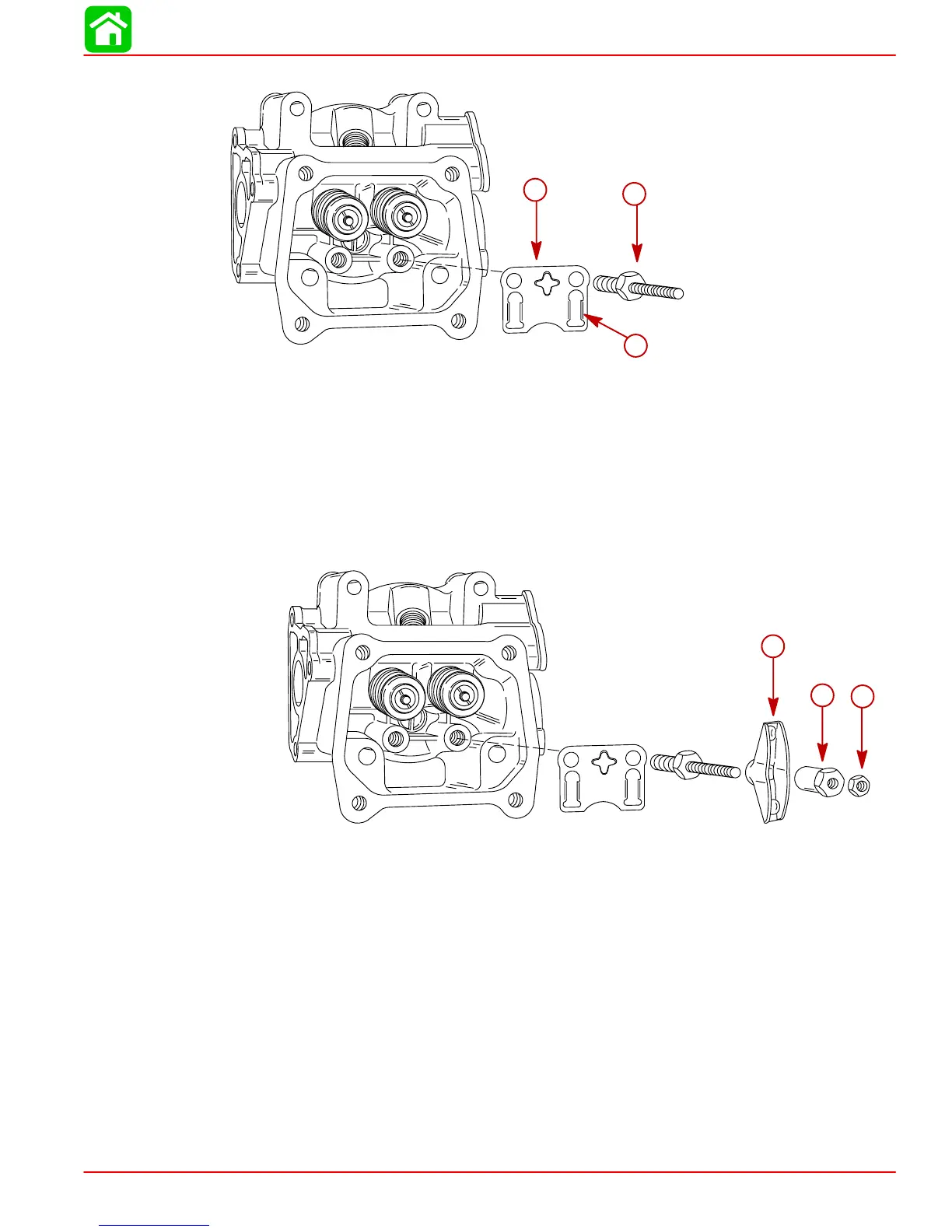

3. Install rocker arm plate and 2 pivot bolts. Torque pivot bolts to 18 lb-ft (24.4 Nm).
57247
a
b
c
a-Guide Plate
b-Pivot Bolts [Torque to 18 lb-ft (24.5 Nm)]
c-Guide Plate Tabs Face UP
4. Install rocker arms, pivots and lock nuts.
IMPORTANT: Do not tighten pivots and lock nuts. Rocker arms must be loose until
after cylinder head assembly is installed on cylinder block and head bolts torqued.
Push rods can then be aligned with rocker arms. Refer to valve adjustment procedure
at that time.
a
b
c
57247
a-Rocker Arm
b-Pivot
c-Lock Nut

Mercury 6 SERIES Specifications

General

Starting	Manual
Cylinders	1
Steering	Tiller
Horsepower	6 HP
Full Throttle RPM Range	5000 - 6000 RPM
Fuel Type	Gasoline
