CYLINDER BLOCK
AND CRANKCASE
Page 4B–16
90-857138R1 MA
Y 2000

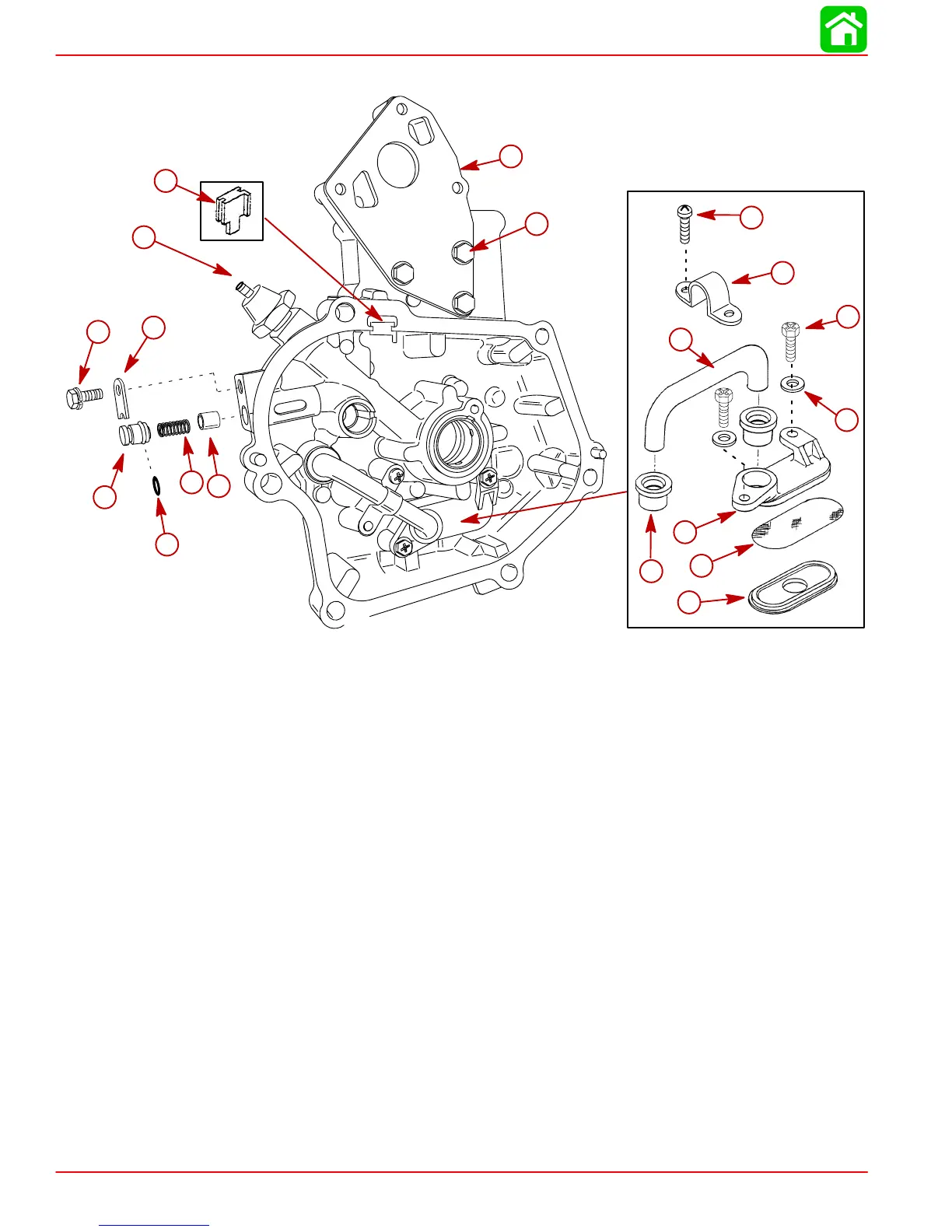

7.
Disassemble the oil pan.
a
i
b
c
d
e
f
g
h
k
l
m
n
o
p
q
r
s
j
a-
Screw M5 x 16 mm
b-
Clamp
c-
Pipe
d-
Screw (2) M5 x 16 mm
e-
W
asher
f-
Seal (2)
g-
Body
h-
Strainer
i-
Cup
j-
Bolt M6 x 16 mm
k-
Cover
l-
Seat
m-
O-Ring Seal
n-
Spring
o-
Plunger
p-
Grommet
q-
Oil Pressure Sensor
r-
Exhaust Plate with Gasket
s-
Bolt (3) M6 x 20 mm
147
