CYLINDER BLOCK
AND CRANKCASE
90-857138R1 MA
Y 2000
Page 4B–17
8.

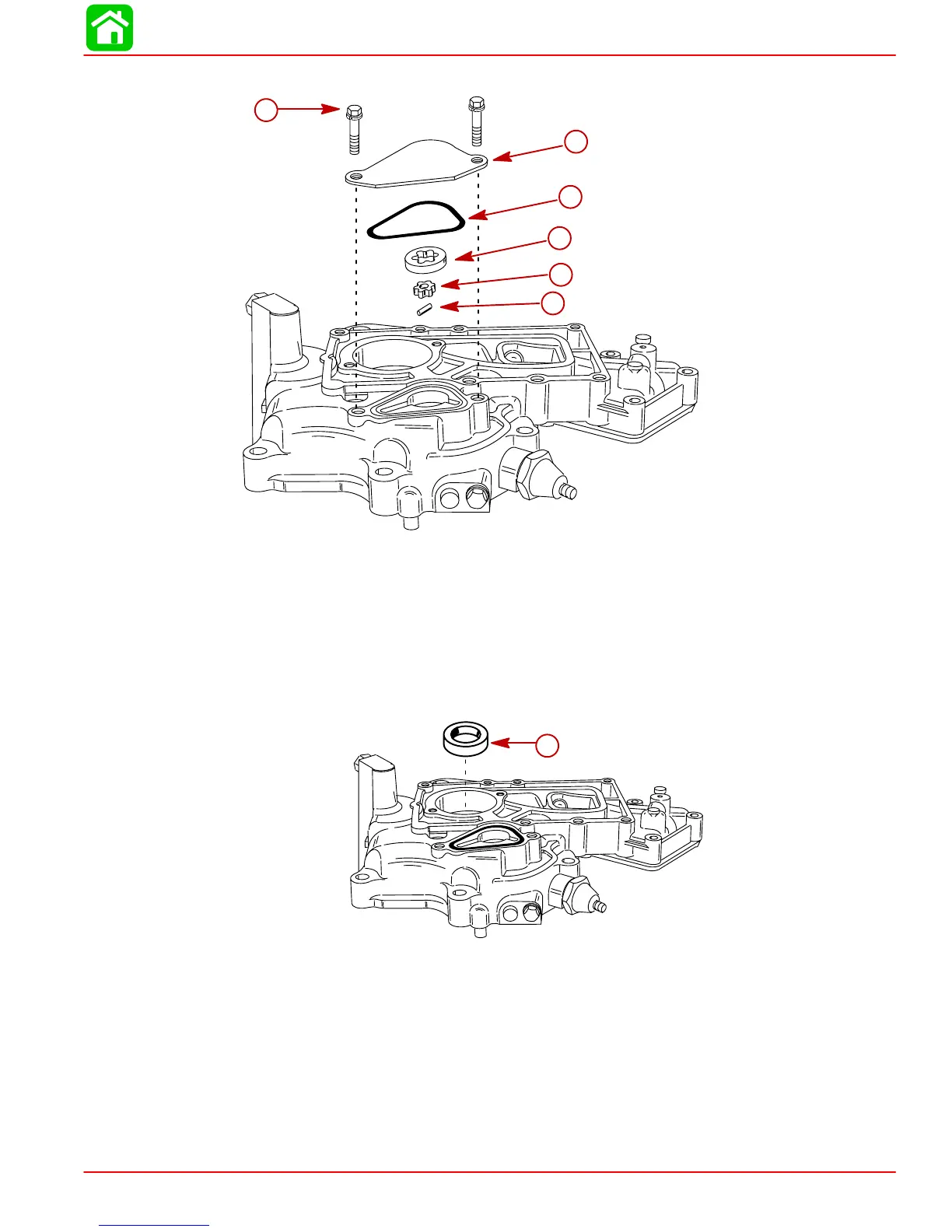

Disassemble the oil pump
c
d
e
f
a
b
a-
Bolt (2) M6 x 20 mm
b-
Cover
c-
O-Ring Seal
d-
Rotor - Outer
e-
Rotor - Inner
f-
Pin
9.
Pull out the lower oil seal.
a
a-
Lower Oil Seal
148
