CYLINDER BLOCK AND CRANKCASE
90-857138R1 MAY 2000 Page 4B–43
Powerhead Installation

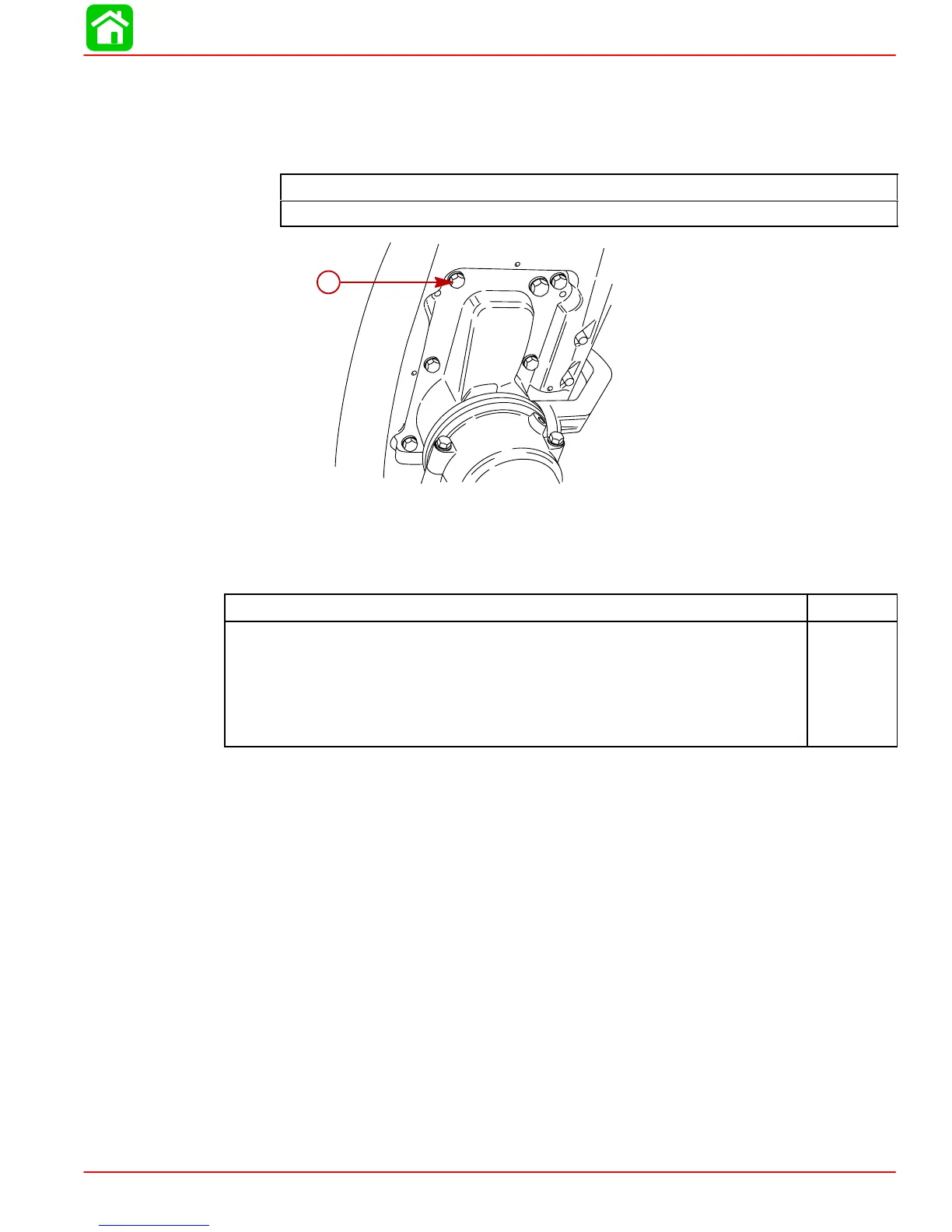

1. Secure powerhead (with new gasket) onto drive shaft housing using 6 bolts. Torque
bolts to 70 lb-in. (8 Nm).
Powerhead Mounting Bolt Torque
70 lb-in. (8 Nm)
56327
a
a-Powerhead Mounting Bolts with Washers (6) M6 x 30 mm
2. Install the following components/assemblies referring to the listed service manual
section(s).
Component/Assembly
Section
a Rewind Starter
b Flywheel/CDI Unit/Ignition Coils
c Carburetor
d Fuel Pump
e Throttle Linkage
8
2A
3B
3A
7
