CYLINDER BLOCK
AND CRANKCASE
Page 4B–42
90-857138R1 MA
Y 2000
26.

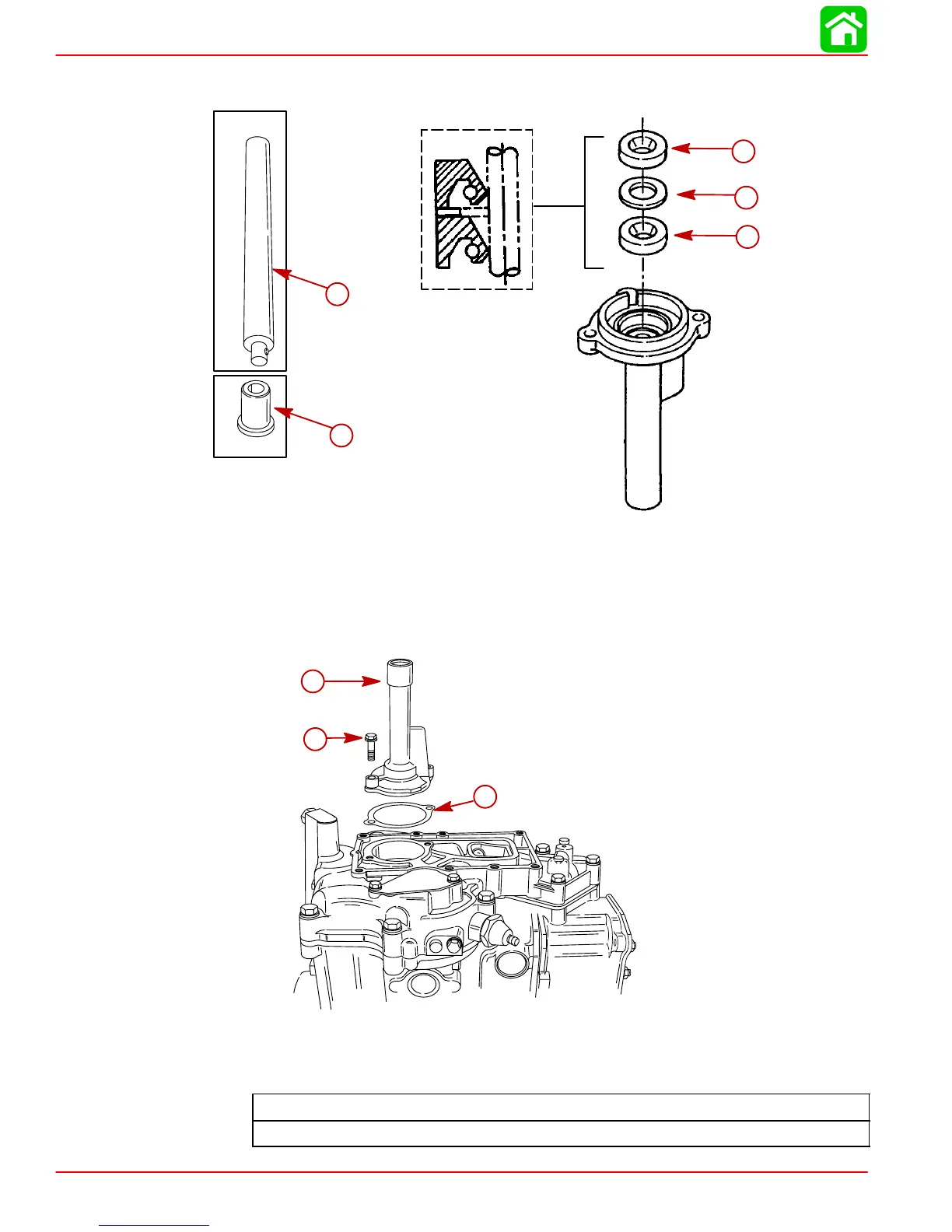

Support oil seal housing and install two seals and spacer
. Use driver and mandrel as
shown.
9184529M
9183172M
a
c
d
a
b
a-
Seal
b-
Spacer
c-
Driver
d-
Mandrel
27.
Reinstall the oil seal housing.
a
b
c
a-
Oil Seal Housing
b-
Bolt (2) M6 x 20 mm
c-
Gasket
Oil Seal Housing Bolt T
orque
70 lb-in. (8 Nm)
173
