Mercury 6 SERIES

IGNITION SYSTEM
Page 2A-20 90-857138R1 MAY 2000
CDI Unit
REMOVAL
1. Disconnect 4 CDI unit lead bullet connectors, BLACK/YELLOW CDI unit lead at ignition
coil and BLACK CDI unit ground lead from ignition coil mounting bolt.
2. Slide CDI unit out of rubber brackets.

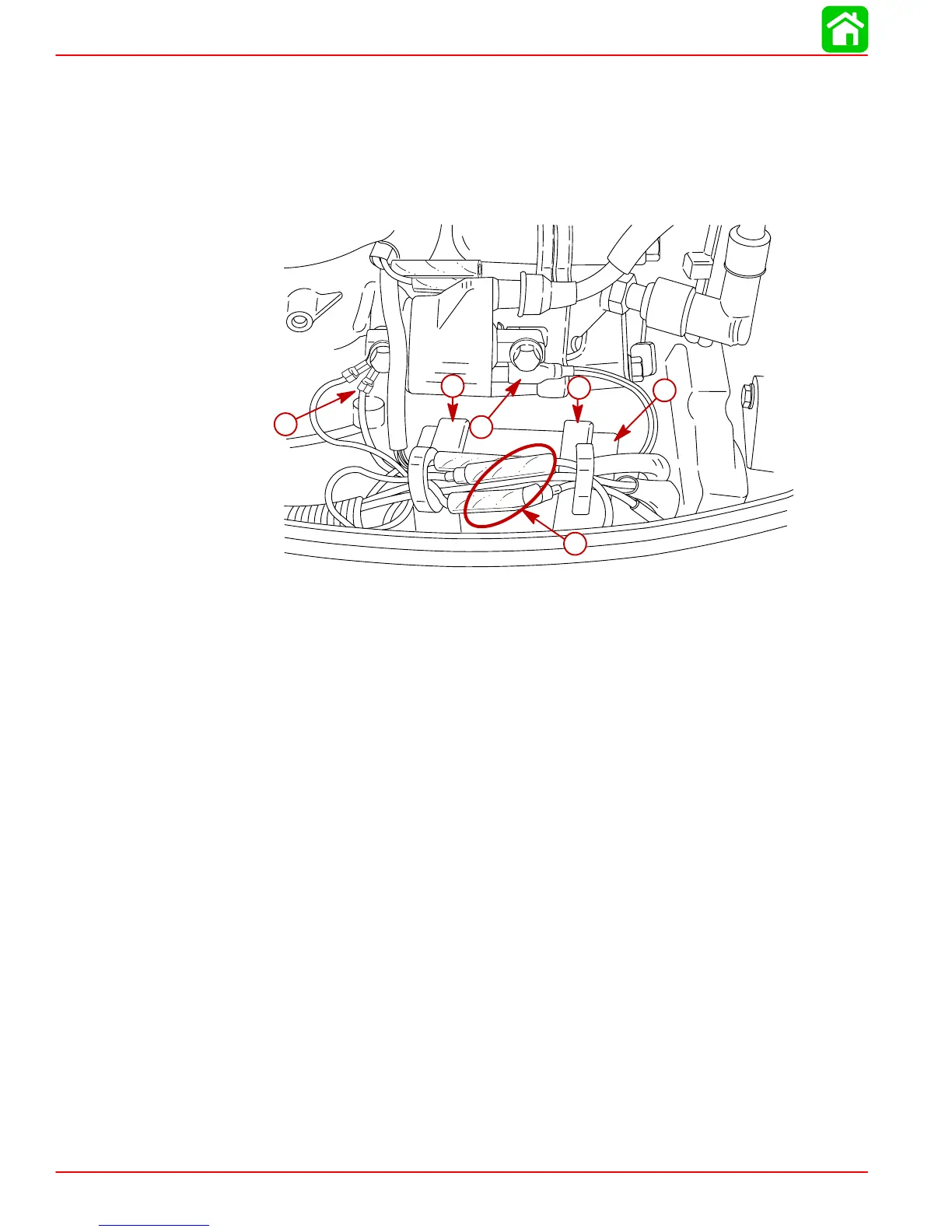

a
b
c
57522
d
e
e
a-Bullet Connectors
b-BLACK/YELLOW CDI Lead
c-BLACK CDI Ground Lead
d-CDI Unit
e-Rubber Brackets
INSTALLATION
1. Slide CDI unit into rubber brackets.
2. Connect 4 CDI unit lead bullet connectors, BLACK/YELLOW CDI unit lead to ignition
coil and BLACK CDI unit ground lead under ignition coil mounting bolt.
