Ignition Coil
REMOVAL
1. Disconnect BLACK/YELLOW CDI unit lead from coil.
2. Disconnect high tension plug lead from spark plug.
3. Remove bolts, and washers and remove coil while disconnecting BLACK ground wires.
a
c
d
b
e

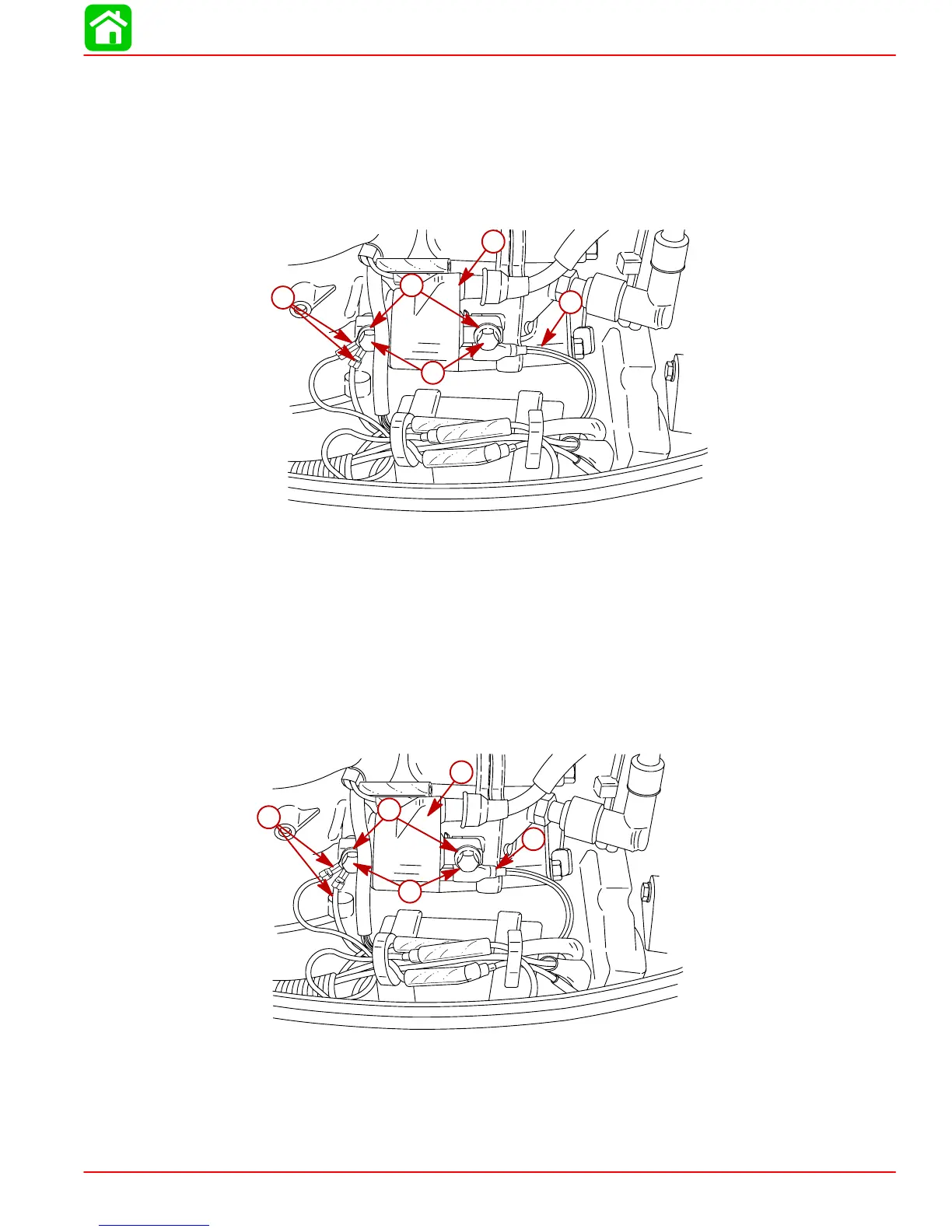

57522
a-BLACK/YELLOW CDI Lead
b-Coil
c-Bolts (2)
d-Washers (2)
e-BLACK Ground Wires
INSTALLATION
1. Secure ignition coil using bolts and washers. Torque bolts to 70 lb-in. (8 Nm). Make sure
to connect BLACK ground wires as shown.
2. Reconnect BLACK/YELLOW CDI unit lead to ignition coil.
57522
a
b
c
d
e
a-Coil
b-Bolts (2)
c-Washers (2)
d-BLACK Ground Wires
e-BLACK/YELLOW CDI Lead
