CHARGING SYSTEM
Page 2B-6 90-857138R1 MAY 2000
3. Remove and discard rubber plug from bottom cowl.

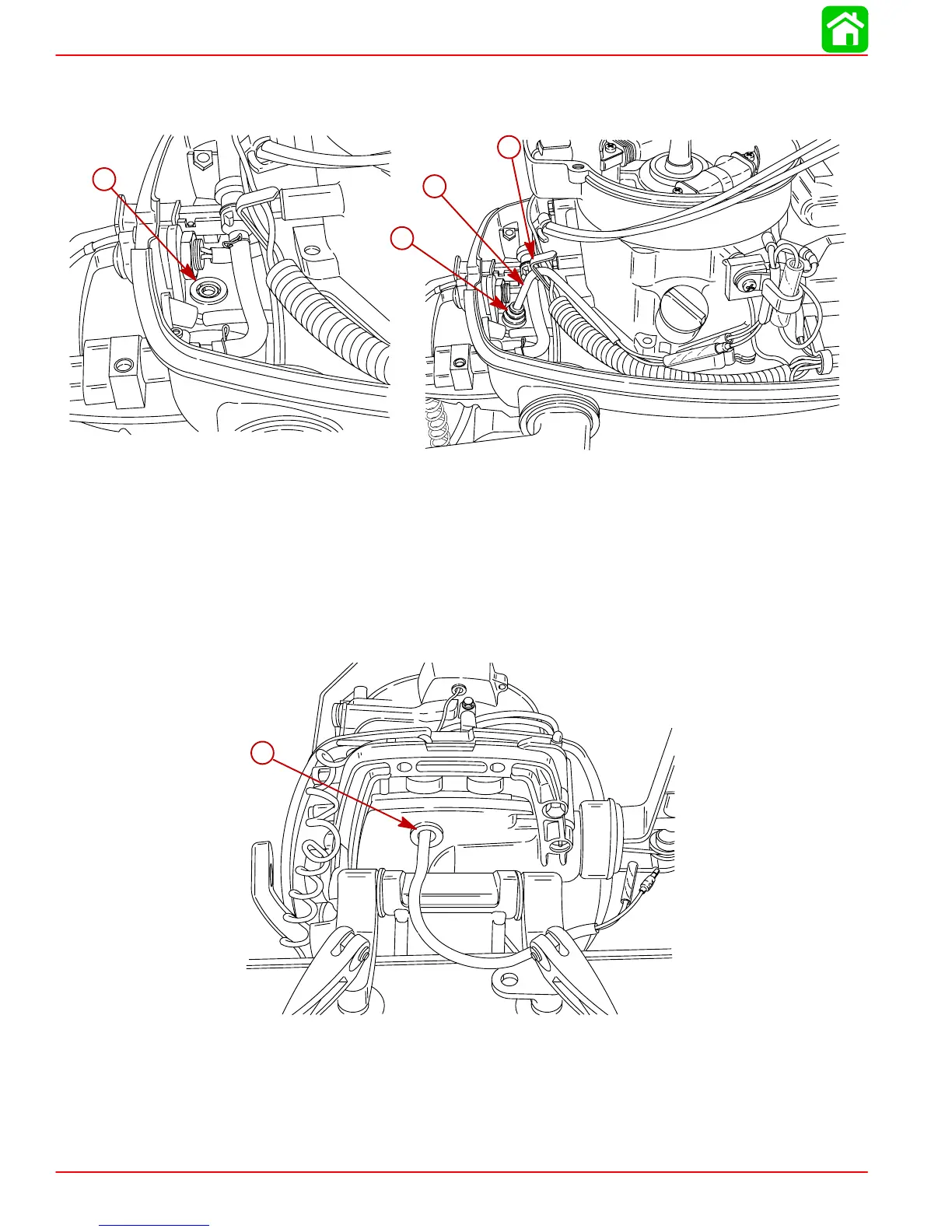

4. Refer to Wiring Diagram “A” and route extension harness thru opening in bottom cowl.
57354
57355
a
b
c
d
a-Plug
b-Harness
c-Clamp (existing)
d-Grommet (provided)
5. Push rubber grommet of extension harness, into opening in bottom cowl.
57356
a
a-Rubber Grommet
