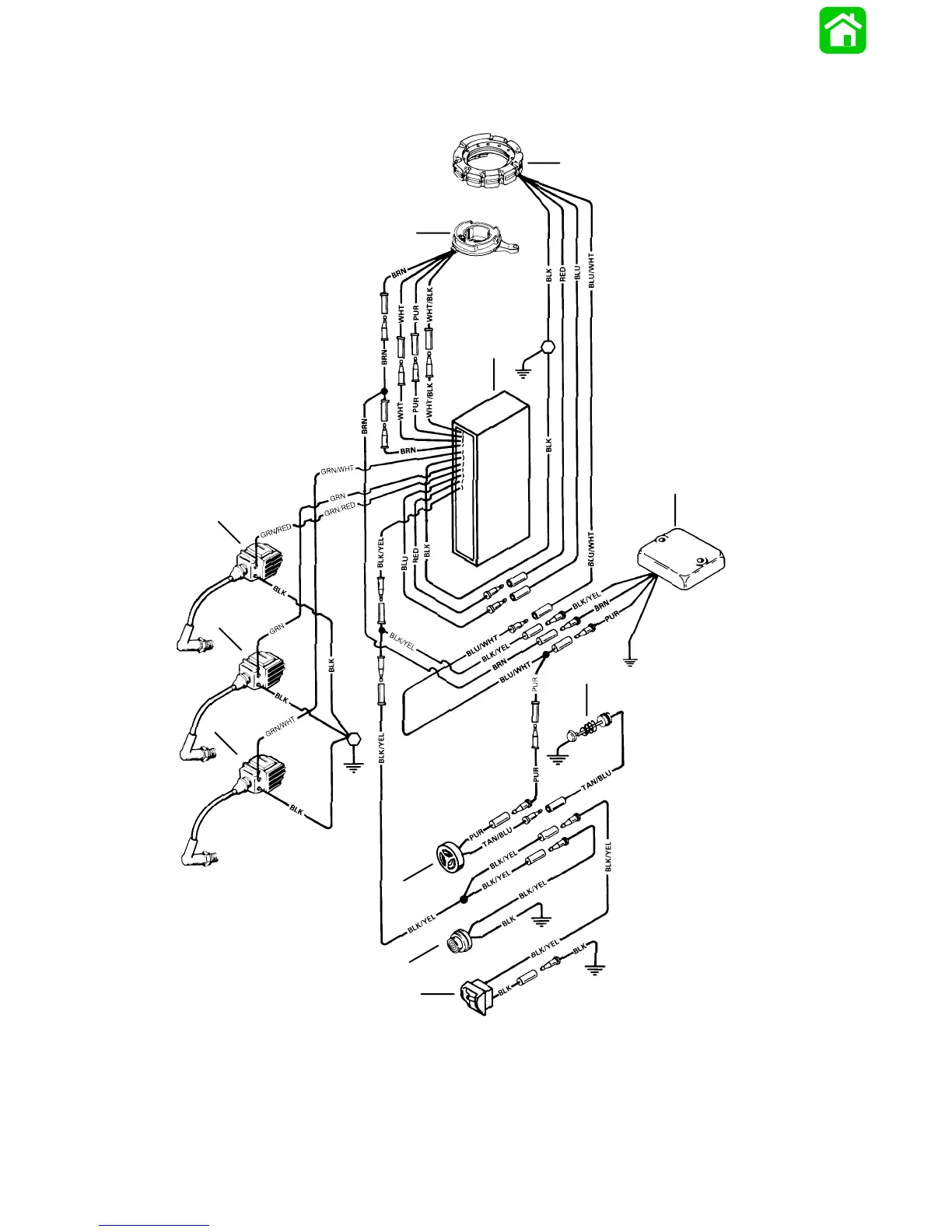

Mercury 65/80 JET - 75 Work Model Wiring Diagram Manual Start (1-2-3 Firing Order)

2D-6 - ELECTRICAL 90-830234R3 DECEMBER 1997
1996 75 Work Model Wiring Diagram Manual Start
(1-2-3 Firing Order)
55422
a
b
c
d
e
f
g
h
i
j
k
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Stator
b - Trigger
c - Switch Box
d - Ignition Coil Cylinder #1
e - Ignition Coil Cylinder #2
f - Ignition Coil Cylinder #3
g - Emergency Stop Switch
h - Stop Button
i - Warning Horn
j - Temperature Switch
k - RPM Limiter
