7B-6 - ATTACHMENTS/CONTROL LINKAGE 90-830234R3 DECEMBER 1997

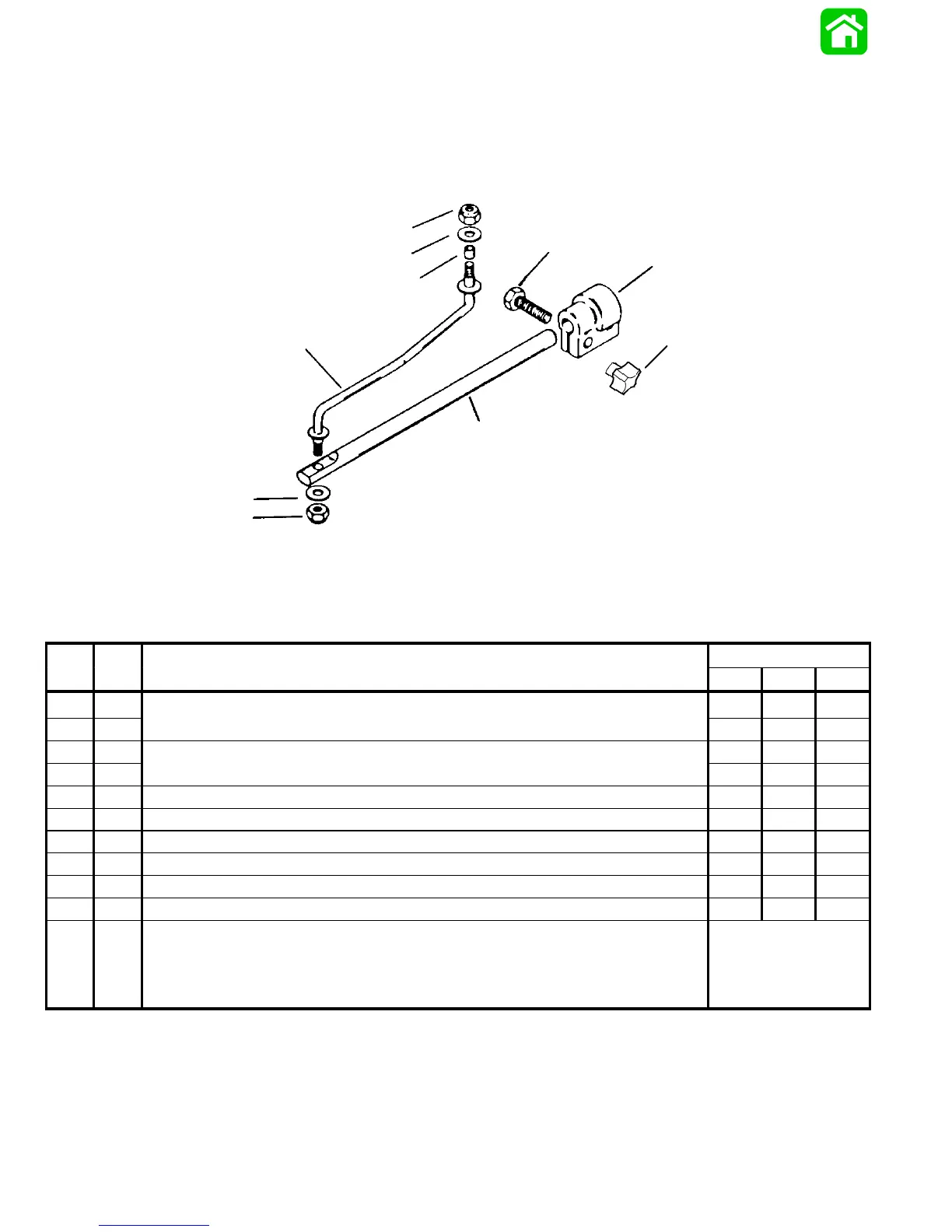

Co-Pilot
1
2
3
4
5
6
7
8
7
8
REF.
TORQUE
REF
.
NO.
QTY. DESCRIPTION lb. in. lb. ft. N·m
– 1 CO-PILOT REPLACEMENT ROD LENGTH
1 1
PILOT ROD is 12-5/8 IN.
– 1 CO-PILOT REPLACEMENT ROD LENGTH
1 1 PILOT ROD is 14-5/8 IN.
2 1 NUT ASSEMBLY
3 1 SCREW
4 1 KNOB–PRONG
5 1 ROD
6 1 BUSHING
7 2 WASHER
8 2 NUT
Tighten Until Nut
Seats; Do Not
Exceed 120 lb.
in.(13.6 N·m), then
back off 1/4 turn
