Mercury 65/80 JET - COMMANDER 2000 Side Mount Remote Control; COMMANDER 2000 Side Mount Remote Control (Electric Start with Warning Horn) Wiring Diagram

2D-24 - ELECTRICAL 90-830234R3 DECEMBER 1997

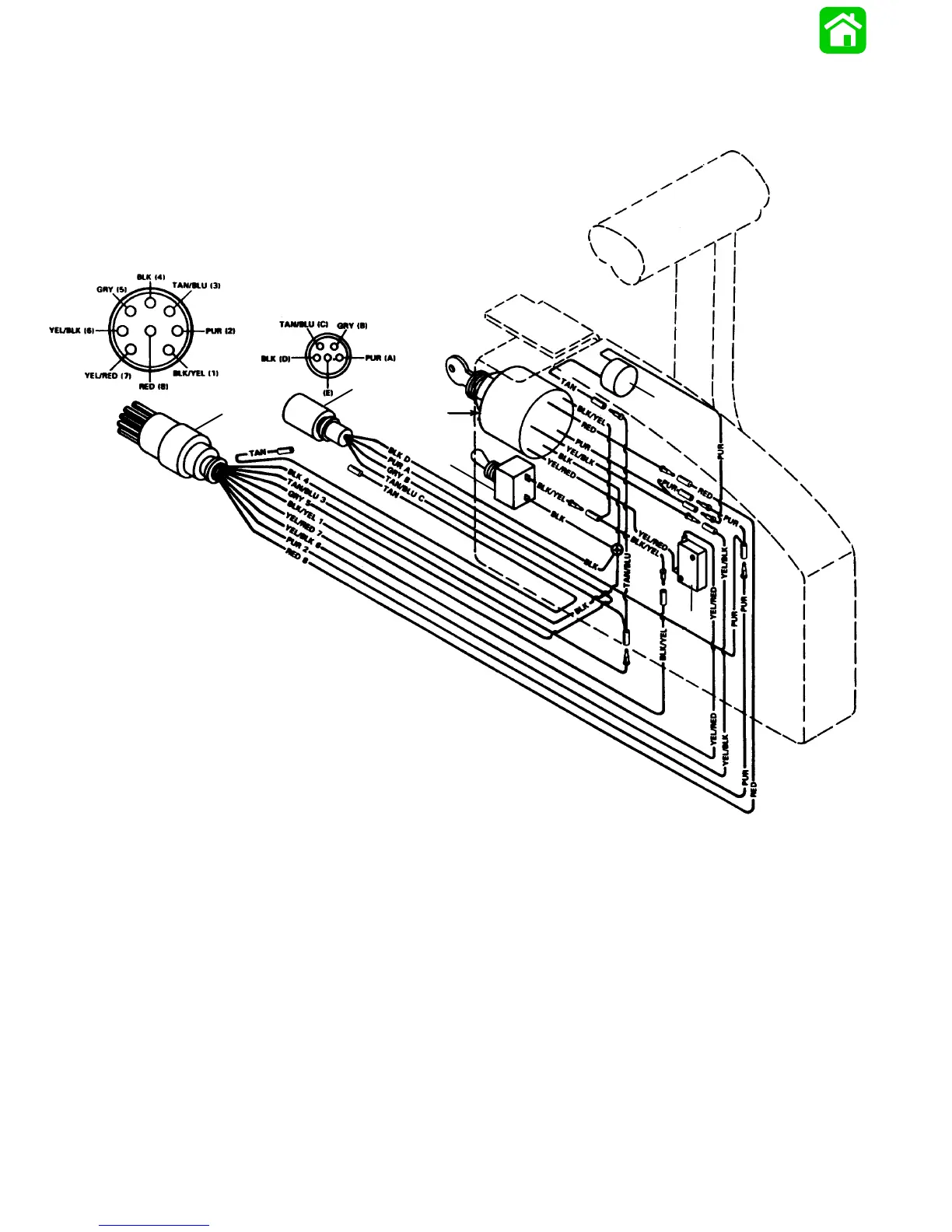

COMMANDER 2000 Side Mount Remote Control
(Electric Start with Warning Horn) Wiring Diagram
23892
e
d
b
a
f
c
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
