Mercury 65/80 JET - Slow Tilt down under High Thrust

5E-8 - MID-SECTION 90-830234R3 DECEMBER 1997

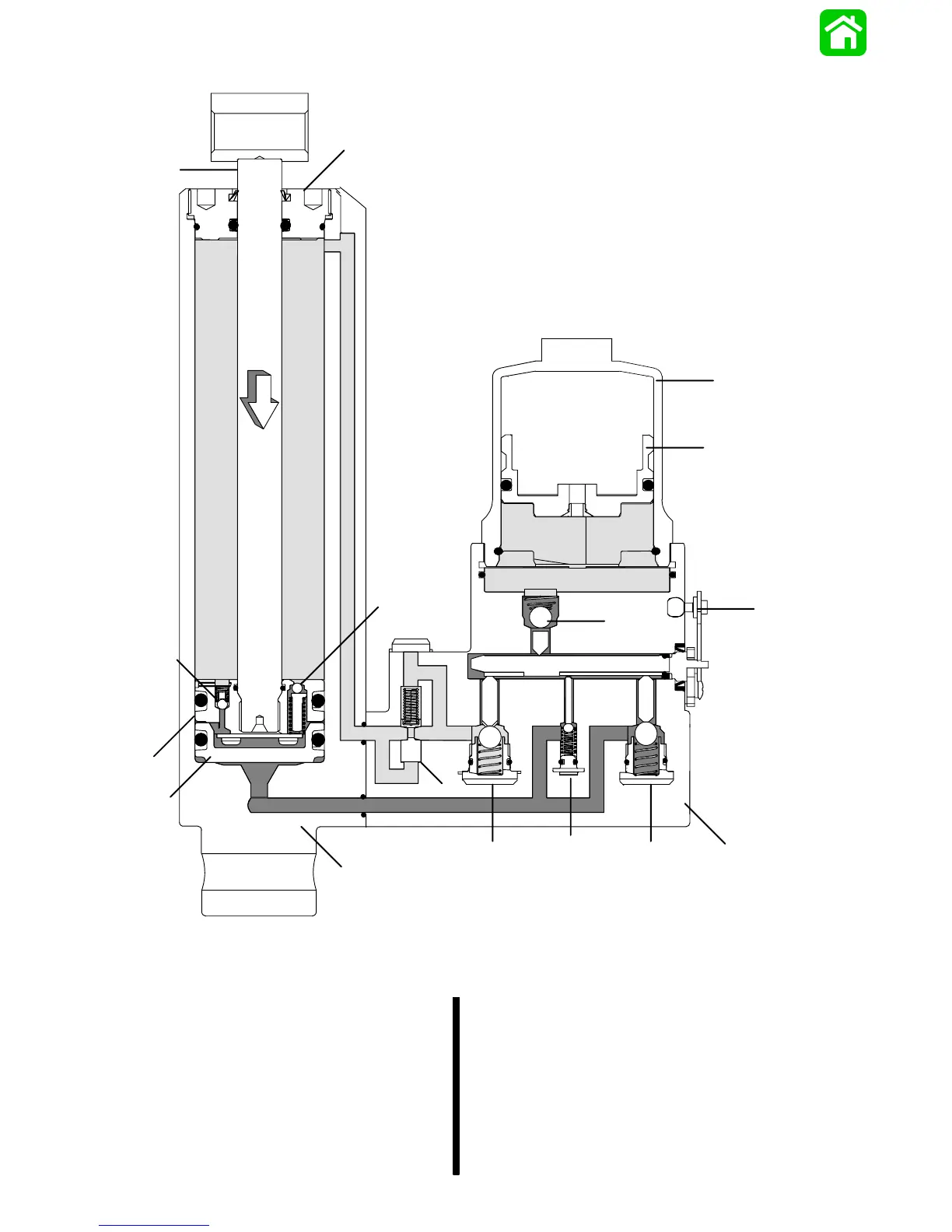

Slow Tilt Down Under High Thrust
a
b
c
d
f
e
g
h
i
j
l
k
p
o
n
m
a - Shock Rod
b - End Cap
c - Accumulator
d - Accumulator Piston
e - Accumulator Check Valve
f - Camshaft Lever
g - Manifold
h - Down Fast Transfer Valve
i - Down Slow Transfer Valve
j - Up Fast Transfer Valve
k - Surge Valve
l - Cylinder
m- Memory Piston
n - Shock Piston
o - Shock Return Valve
p - Impact Relief Valve
