2D-22 - ELECTRICAL 90-830234R3 DECEMBER 1997

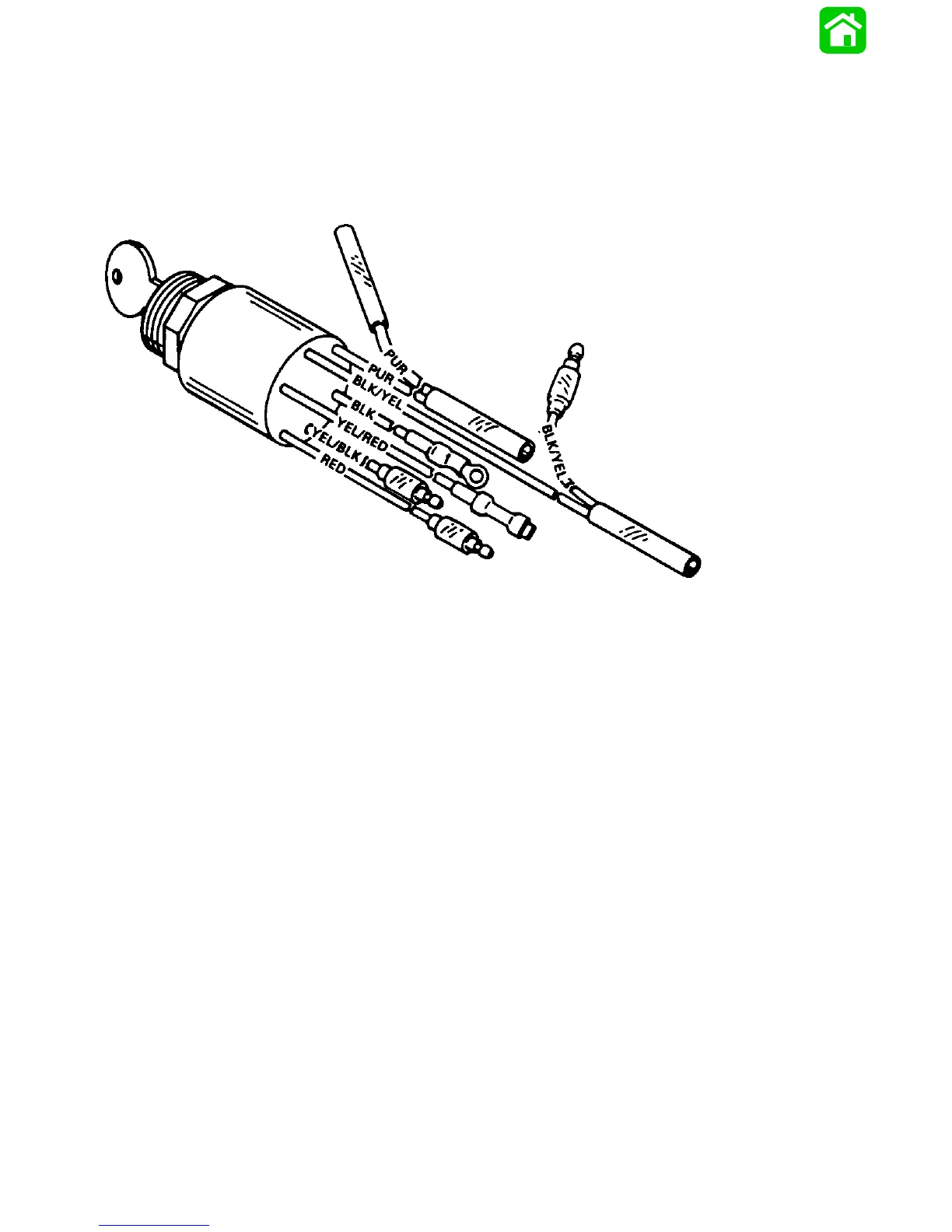

Key/Choke Switch Continuity Test
(COMMANDER 2000 Side Mount Remote Control)
23894
“OFF” BLK/YEL – BLK
“RUN” RED – PUR
“START” RED – PUR – YEL/RED
PUSH (CHOKE)* RED – YEL/BLK
*Key switch must be positioned to “RUN” or
“START” and key pushed in to actuate choke,
for this continuity test.
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
