Mercury 75 OptiMax User Manual

OUTBOARD INSTALLATION
108 eng

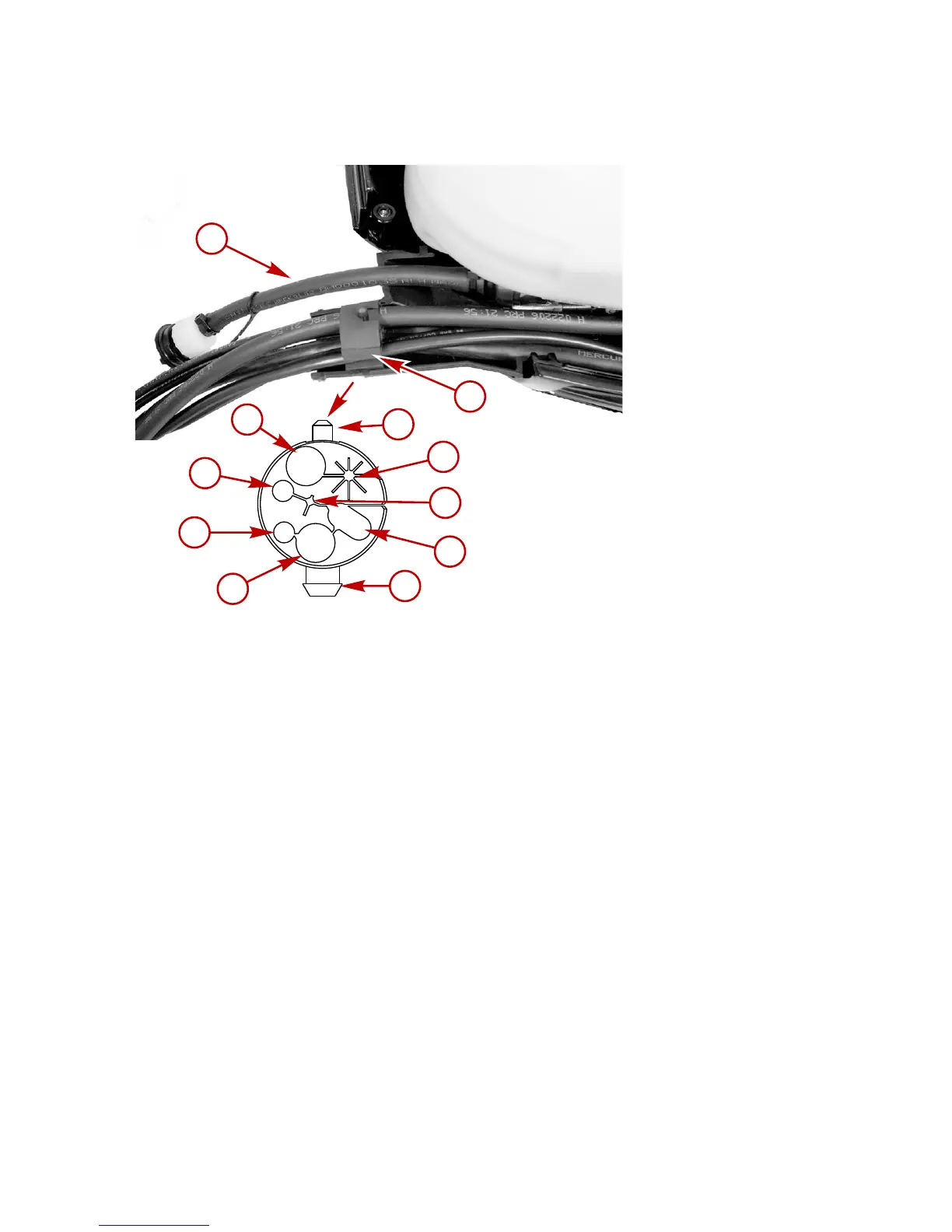

4. Install the flush hose after removing the knockouts. Refer to
Flush Hose Routing.
a - Flush hose
b - Grommet
c - Remote boat harness
d - Shift cable
e - Throttle cable
f - Fuel hose
g - Upper alignment pin
h - SmartCraft harness or additional harness opening
i - Water pressure tube
j - Battery cables
k - Lower alignment pin
5. Reinstall the access cover with two bolts. Reattach the cowl
seal.
F
TH
SH
B
W
a
c
d
e
f
g
h
i
j
k
b
23638
