FEATURES AND CONTROLS
eng 47
Power Trim and Tilt
Your outboard has a trim/tilt control called power trim. This
enables the operator to easily adjust the position of the outboard
by pressing the trim switch. Moving the outboard in closer to the
boat transom is called trimming in or down. Moving the outboard
further away from the boat transom is called trimming out or up.
The term trim generally refers to the adjustment of the outboard
within the first 20° range of travel. This is the range used while
operating your boat on plane. The term tilt is generally used
when referring to adjusting the outboard further up out of the
water. With the engine turned off, the outboard can be tilted out
of the water. At low idle speed, the outboard can also be tilted up
past the trim range to permit, for example, shallow water
operation.

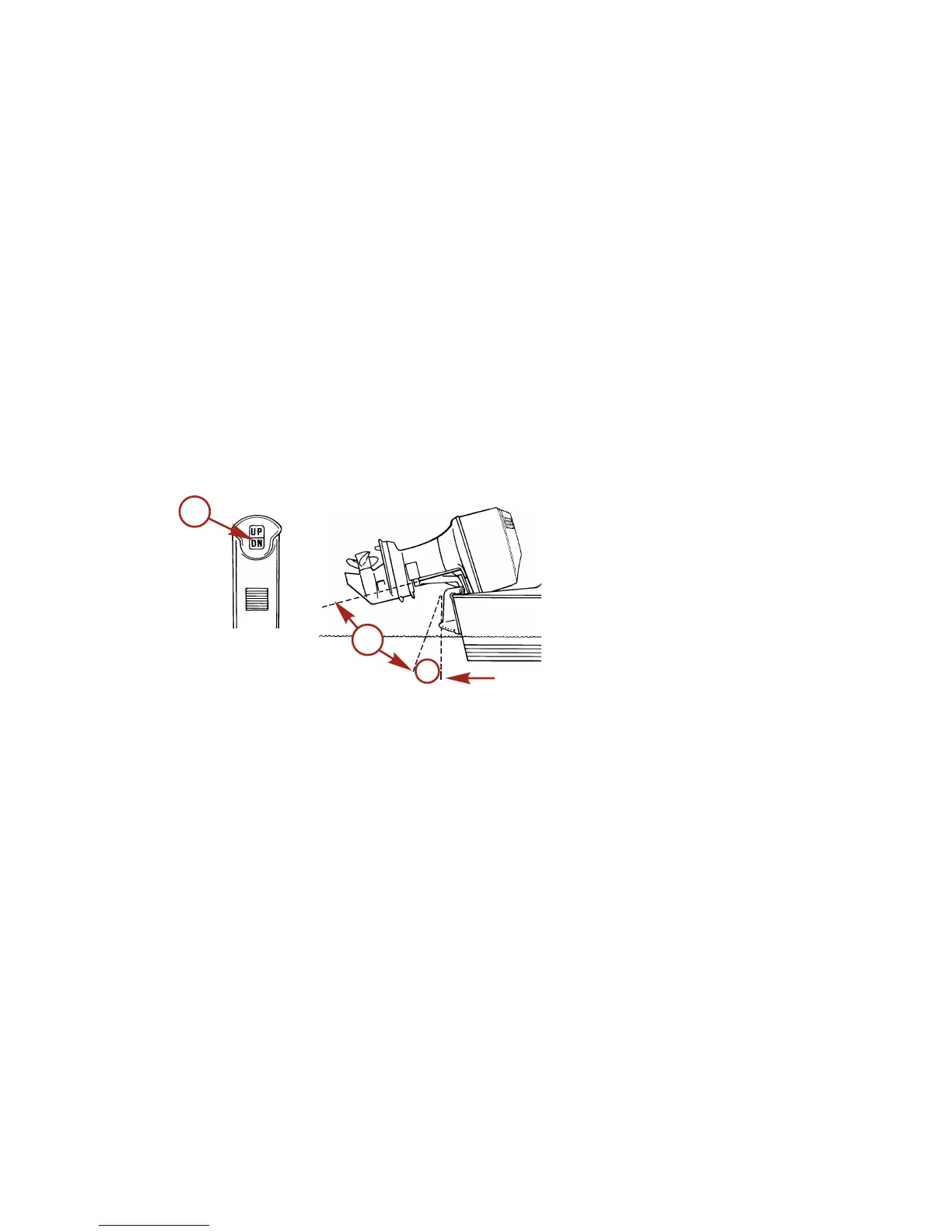

a - Trim switch
b - Tilt range of
travel
c - Trim range of
travel
POWER TRIM OPERATION
NOTE: When traveling at slow speeds, a slight drop in engine
RPM may be noticed on occasion when engaging power trim.
This condition is normal and has no adverse affect on the
outboard.
With most boats, operating around the middle of the trim range
will give satisfactory results. However, to take full advantage of
the trimming capability there may be times when you choose to
trim your outboard all the way in or out. Along with an
improvement in some performance aspects comes a greater
responsibility for the operator, and this is being aware of some
potential control hazards.
