Mercury 75 OptiMax

GENERAL INFORMATION
34 eng
Models 75 90
115/115 Pro
XS
125
Sound at
drivers ear
(ICOMIA 39‑94)
dBA
82.0

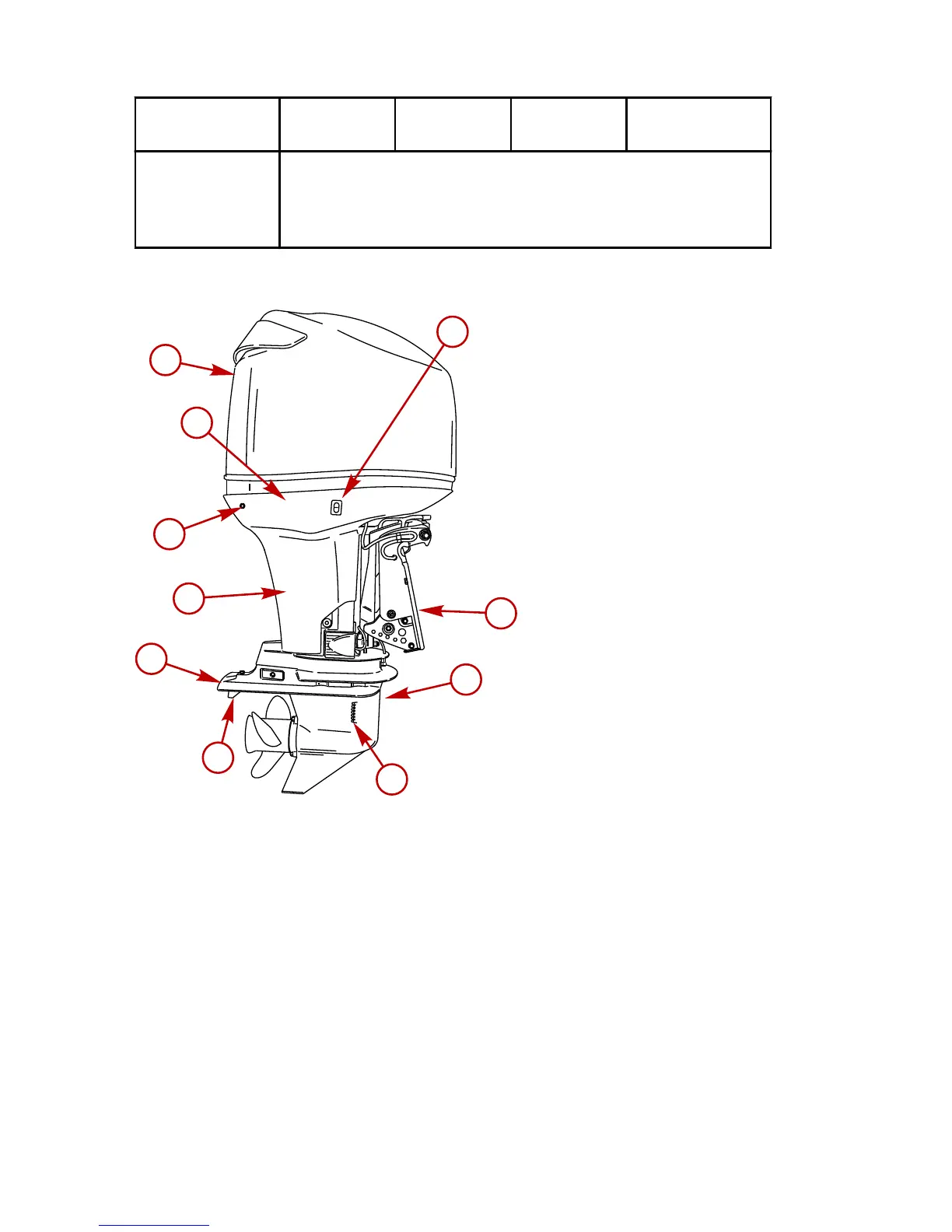

Component Identification
a - Top cowl
b - Auxiliary tilt switch
c - Transom brackets
d - Gearcase
e - Cooling water
intake holes
f - Trim tab
g - Anti‑ventilation
plate
h - Driveshaft housing
i - Water pump
indicator hole
j - Bottom cowl
a
j
i
h
b
g
f
e
d
c
