90-830234R3 DECEMBER 1997 MID-SECTION - 5C-29

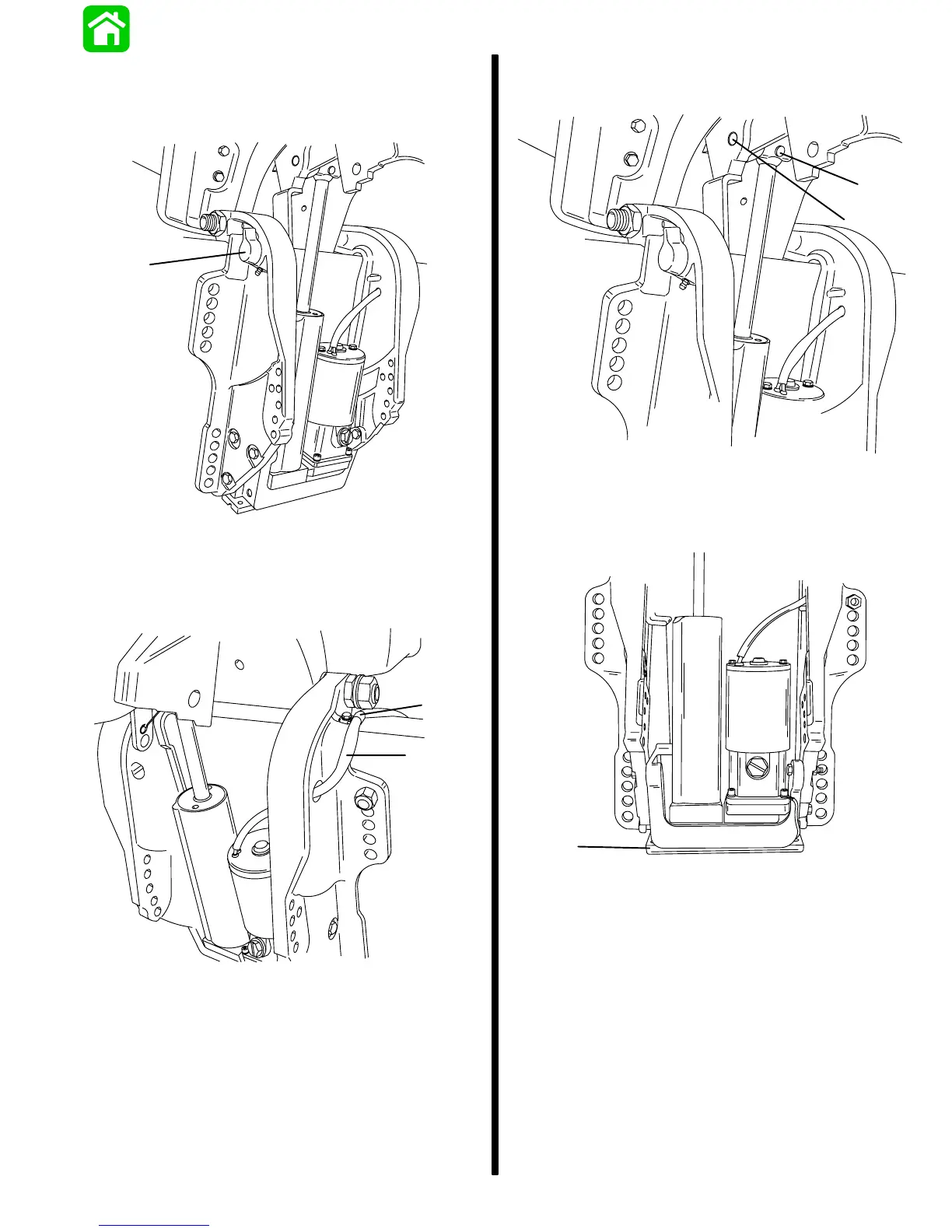

Power Trim System Removal
1. Tilt outboard to the full up position and support
with tilt lock pin.
a
55464
a - Tilt Lock Pin
2. Disconnect the power trim wire harness and re-
move clamp.
a
b
55264
a - Power Trim Wire Harness Clamp
b - Harness
3. Remove the trilobe pin.
4. Drive out the upper pivot pin.
a
b
a - Trilobe Pin
b - Upper Pivot Pin
5. Remove the sacrificial anode.
a
55331
a - Sacrificial Anode
