Mercury 75 SEA PRO - Drive Shaft Wear Sleeve Installation

90-830234R3 DECEMBER 1997 LOWER UNIT - 6A-23

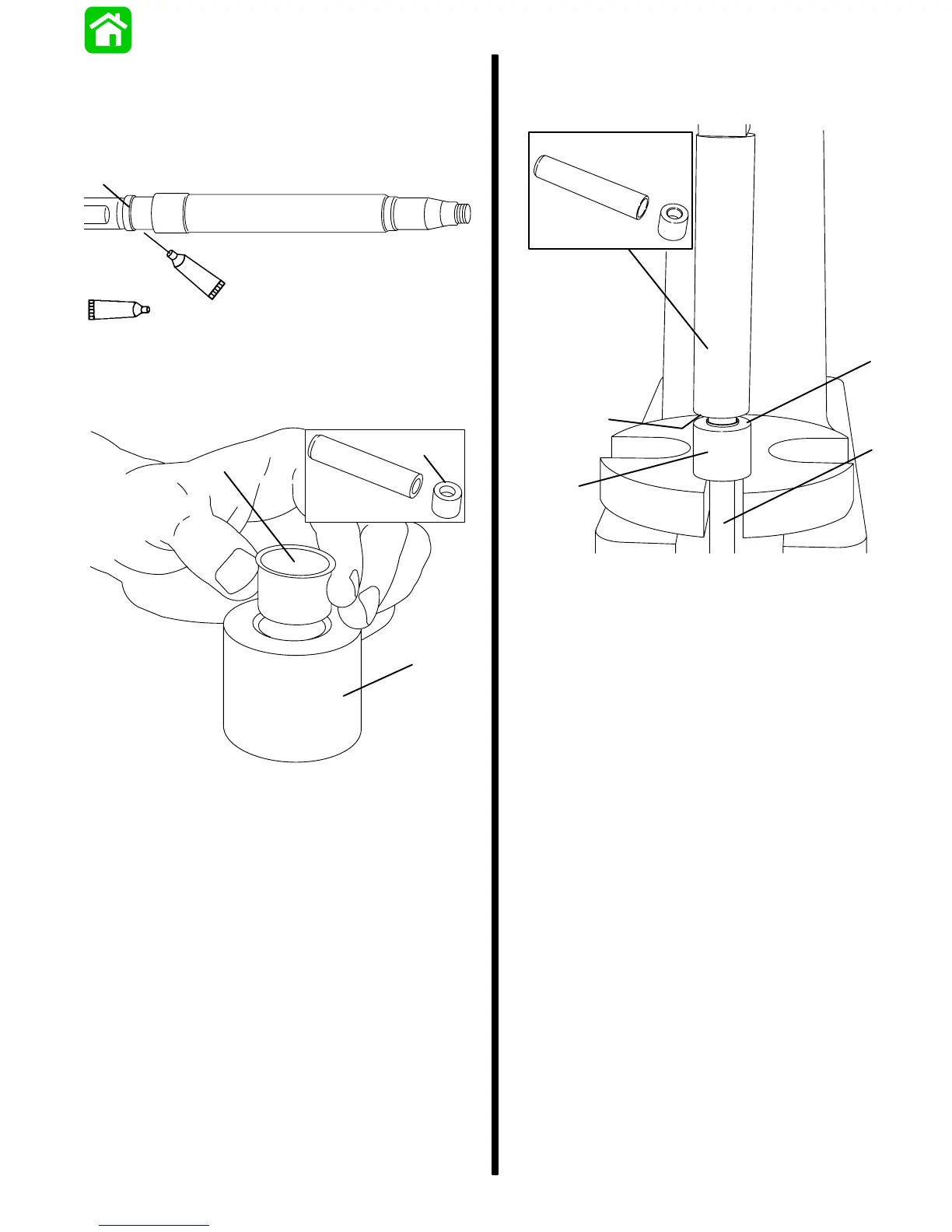

Drive Shaft Wear Sleeve Installation
1. Install new rubber ring.
2. Apply a light coat of Loctite 271 on outside diame-
ter of rubber ring.
a
19152
7
7
Loctite 271 (92-809820)
a - Ring
3. Insert sleeve into holder*.
* Component of Wear Sleeve Installation Tool (91-14310A1).
b
a
a
19169
a - Sleeve
b - Holder
4. Press sleeve onto drive shaft using Wear Sleeve
Installation Tool (91-14310A1); continue press-
ing until surface contacts surface.
b
c
b
d
a
19166
a - Drive Shaft
b - Wear Sleeve Installation Tool
c - Surface
d - Surface
5. Remove excess Loctite from assembled shaft.
