Mercury 75 - Shift Cable Installation

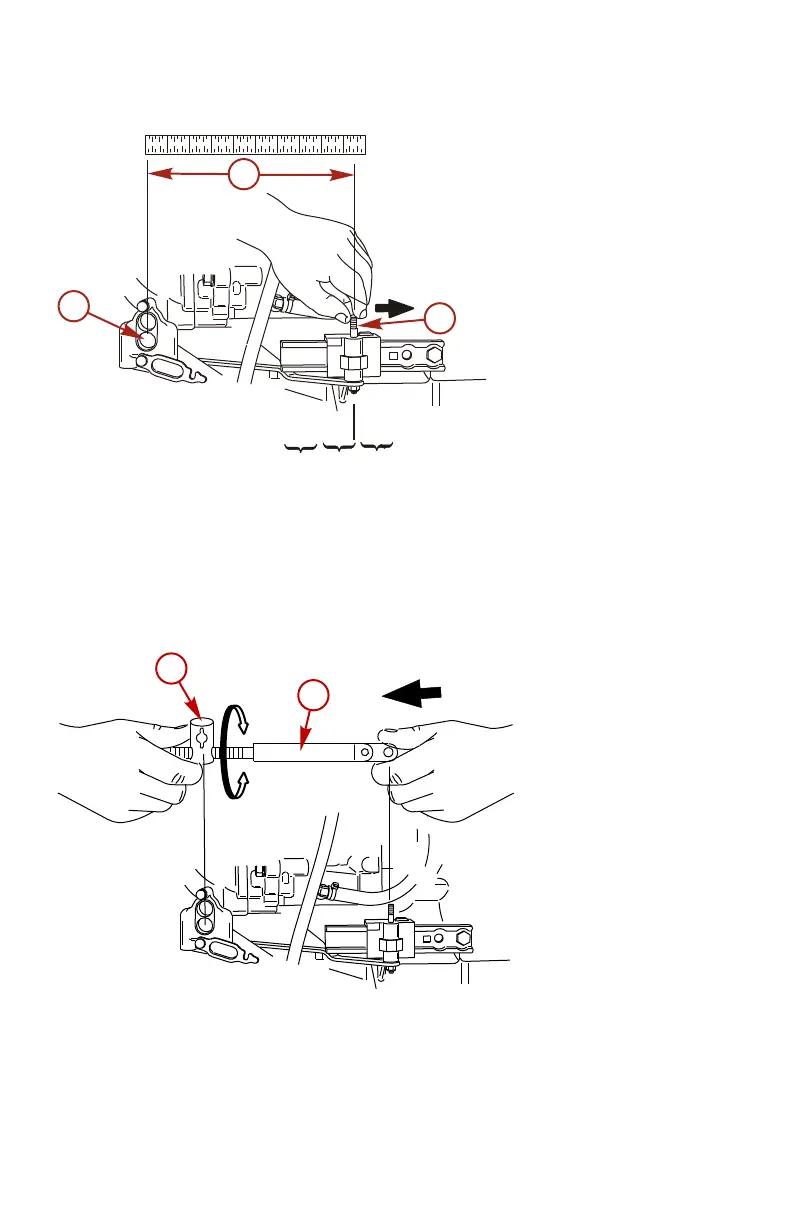

3. Measure the distance between pin and center of barrel pocket.
a - Distance between pin and center of lower hole
b - Pin
c - Barrel pocket
4. Push in on the shift cable end until resistance is felt. Adjust the cable
barrel to attain distance measured in Step 3.
a - Shift cable end
b - Cable barrel
