Mercury 8 User Manual

ENGINE INSTALLATION
111

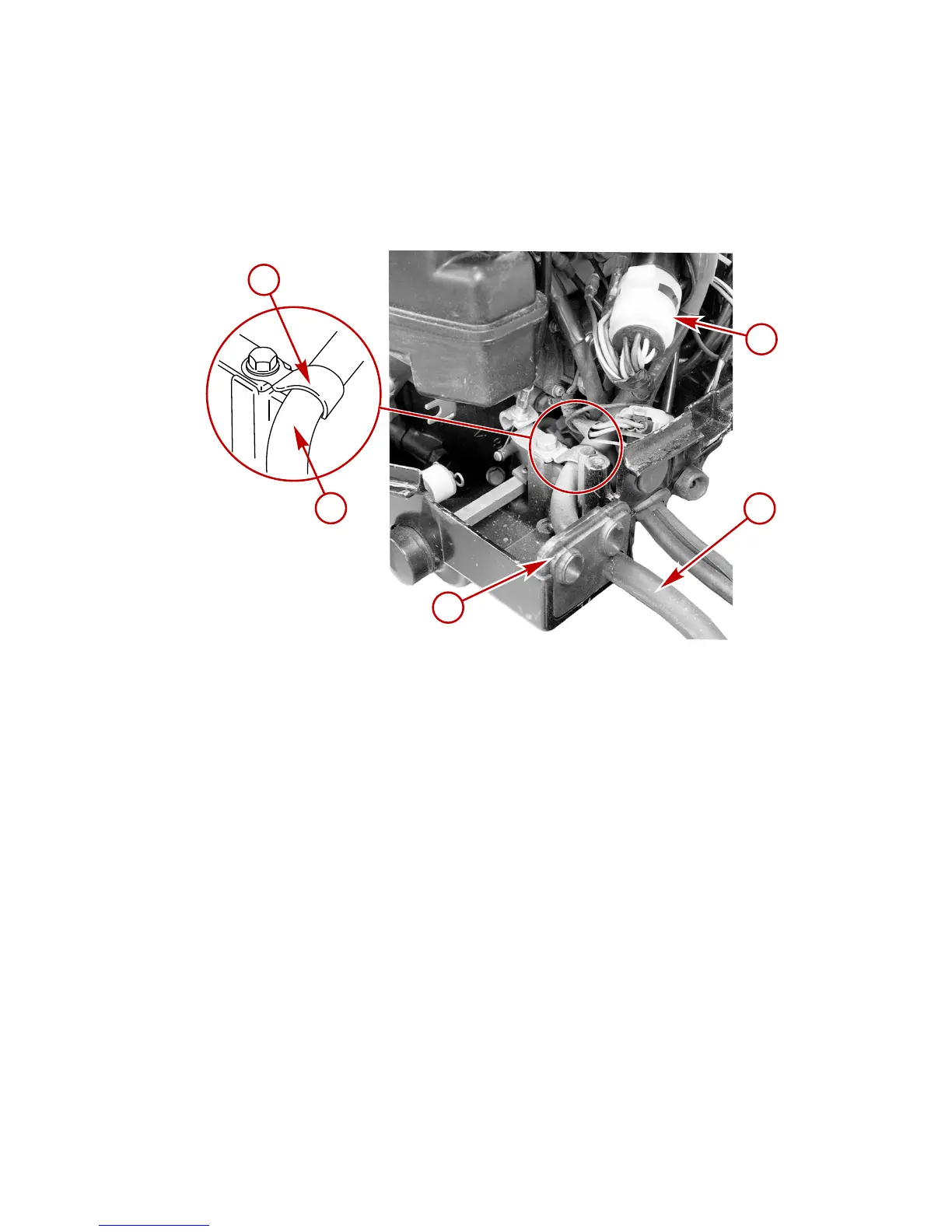

2. Route the remote wiring harness through the rubber grommet.
3. Open up the clamp in the bottom cowl and position the remote
wiring harness below the clamp. Connect the 8 pin connector
to the engine harness. Push the clamp down and secure the
remote wiring harness into the bottom cowl.
a
b
c
b
d
28798
a - Clamp
b - Remote wiring
harness
c - 8 pin connector
d - Rubber grommet

Mercury 8 Specifications

General

Full Throttle RPM	5000-6000 RPM
Cylinders	2
Gear Ratio	2.08:1
Horsepower	8 HP
Starting	Manual
Shaft Length	15 in, 20 in
Fuel Tank Capacity	External
