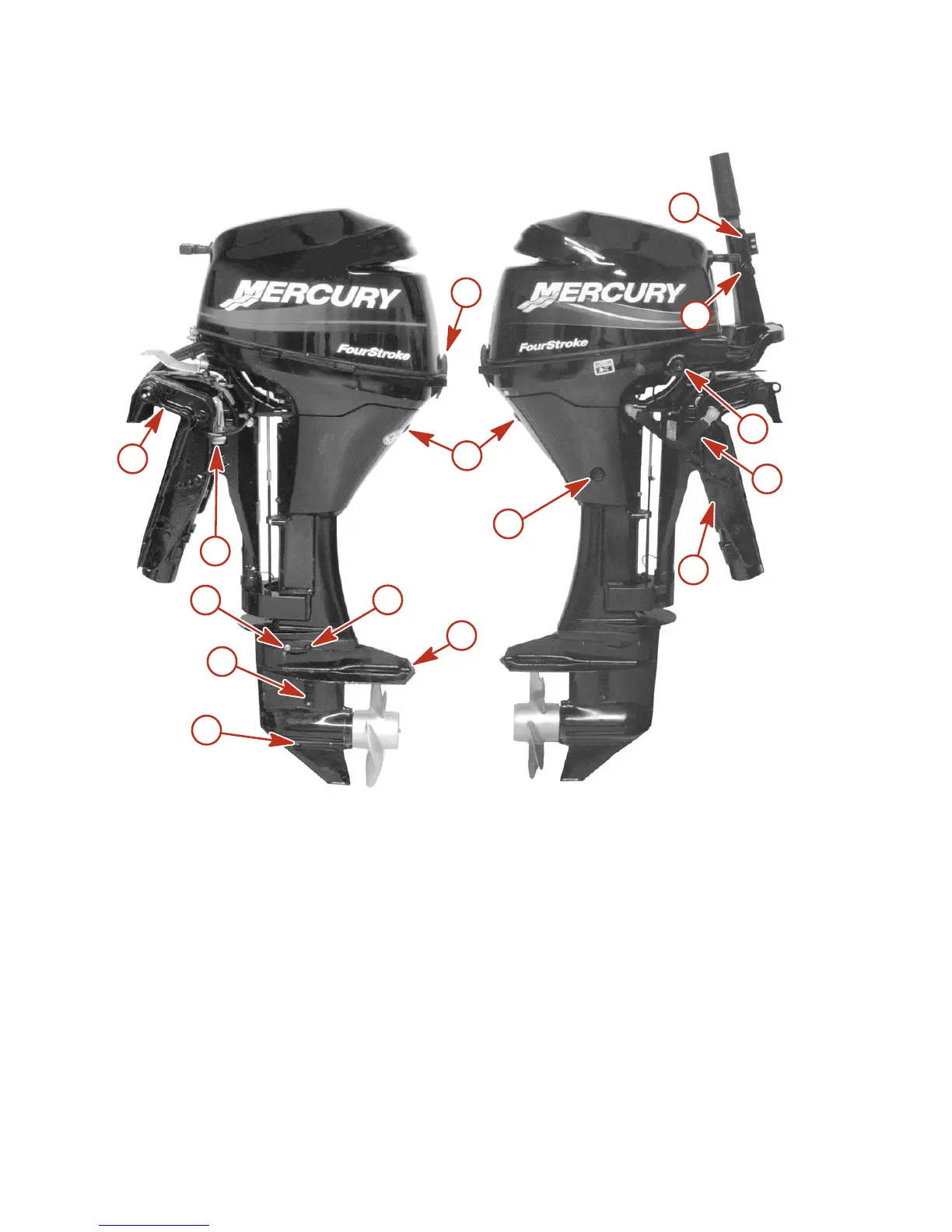

Component Identification ‑ Bigfoot Models
a
b
c
d
e
f
g
h
i
4538
j
l
m
n
k
o
a - Transom bracket
b - Tilt support lever
c - Gear lubricant level plug
d - Water inlet
e - Gear lubricant fill/drain
plug
f - Anti‑ventilation plate
g - Engine flush plug
h - Water pump indicator
hole
i - Cowl latch
j - Oil drain screw
k - Power tilt
l - Kicker strap
m -Throttle only button
n - Throttle grip friction knob
o - Power tilt button

Mercury 8 Specifications

General

Full Throttle RPM	5000-6000 RPM
Cylinders	2
Gear Ratio	2.08:1
Horsepower	8 HP
Starting	Manual
Shaft Length	15 in, 20 in
Fuel Tank Capacity	External
