FEATURES AND CONTROLS
52
Warning System
The warning system on this engine does not have a warning horn.
Instead, there is an oil pressure light located on the front of the
engine. If oil pressure drops below 25 kPa (3.6 PSI) the oil pressure
light will illuminate, the Engine Guardian System will be activated,
and engine RPM will be limited to 3000.
The Engine Guardian System will also limit RPM of the engine in
the event of an over‑speed condition due to cavitation, no load on
propeller, and/or under propped.

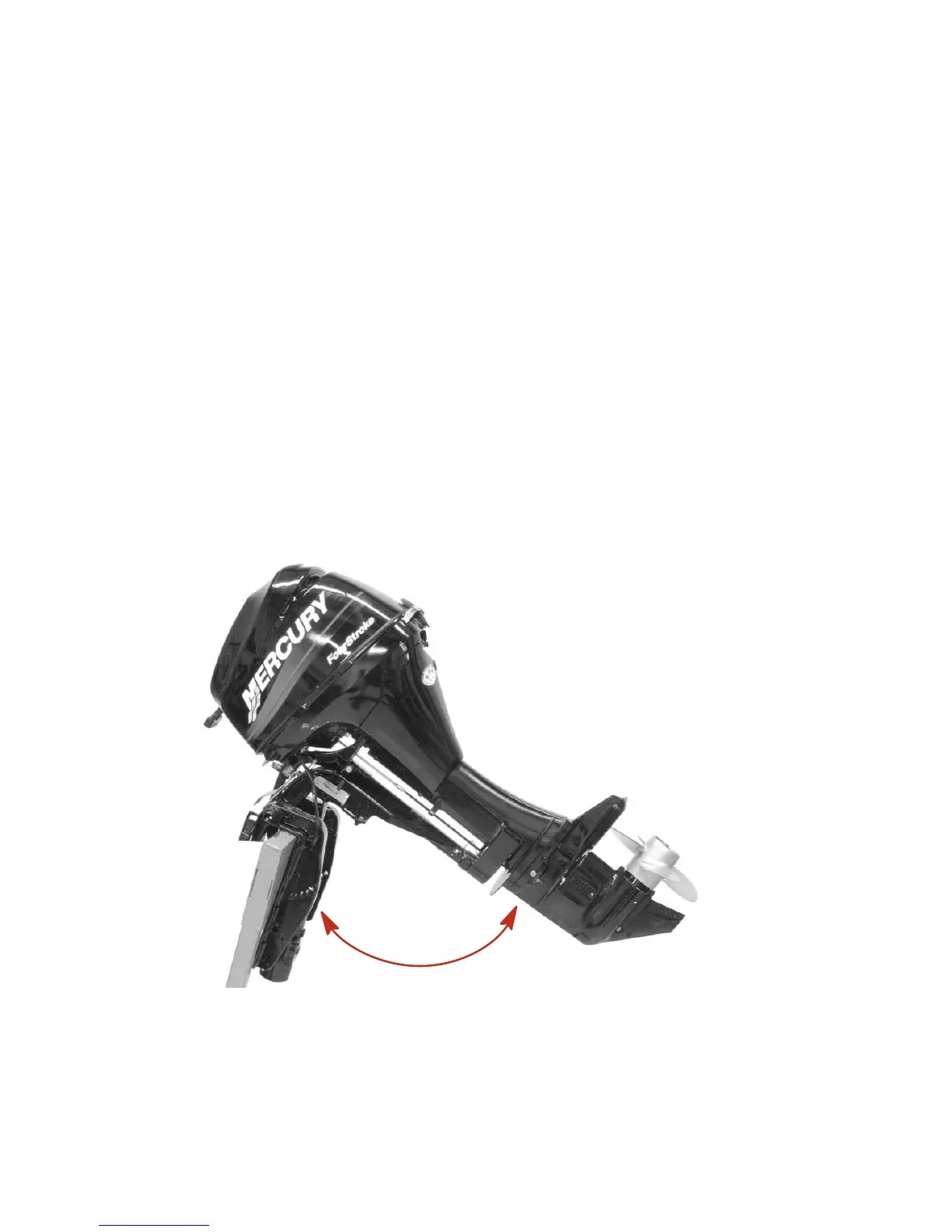

Power Tilt (if equipped)
This outboard has a tilt control called power tilt. This enables the
operator to easily adjust the position of the outboard by pressing
the tilt switch. With the engine turned off, the outboard can be tilted
out of the water. At low idle speed, the outboard can also be tilted
up to permit shallow water operation.
