Section 2 - On the Water
Page 22 90-8M0099745 eng MAY 2015

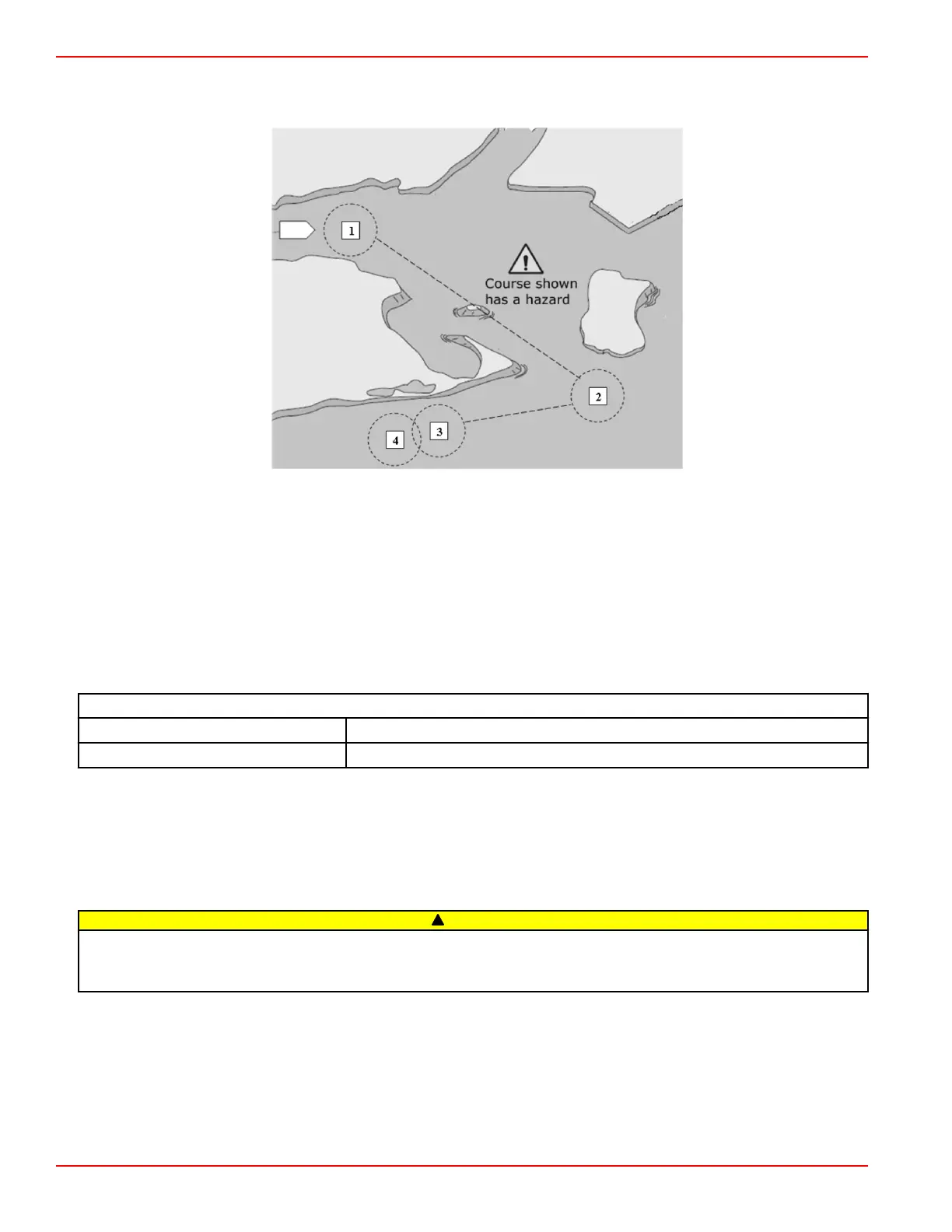

• A route, including waypoints 1, 2, and 3, is represented by the straight dashed‑line. The autopilot system will attempt to
navigate this route. It is the responsibility of the captain to ensure that the route does not contain any hazards, and to keep
watch while underway.
Example route
When the track waypoint feature is activated and the boat is put into operation:
• The operator must remain at the helm at all times. The feature is not designed to allow unattended operation of the vessel.
• Do not use track waypoint as the sole source of navigation.
IMPORTANT: Track waypoint can be used only with chartplotters approved by Mercury Marine.
Waypoint data needs to be provided to Mercury autopilot by a third‑party chartplotter. The arrival radius must be no less than
0.05 nautical mile (0.06 mile). Refer to the chartplotter's user manual for details.
The accuracy of the feature can be affected by environmental conditions and incorrect use. Observe the following information
when using the track waypoint and waypoint sequencing feature.
Waypoint data—distance settings
Between waypoints Greater than 1.0 nautical mile (1.15 mile)
Arrival radius alarms No less than 0.05 nautical mile (0.06 mile)
Engaging Track Waypoint Mode
To engage the track waypoint mode:
1. Turn on the chartplotter and select a single waypoint or waypoint route to be tracked.
2. Place at least one ERC lever in forward gear. Track waypoint does not function if both levers are in neutral or reverse.
3. Manually steer the boat to the direction of the first waypoint and hold the boat steady at a safe operating speed.
IMPORTANT: The vessel must maintain a speed no less than 4.8 km/h (3 mph.) for track waypoint to function.
!
CAUTION
Avoid injury from unexpected turns at high speeds. Engaging the Track Waypoint or Waypoint Sequence feature while on
plane can cause the boat to turn sharply. Confirm the direction of the next waypoint before engaging these autopilot features.
When underway in Waypoint Sequence mode, be prepared to take appropriate action when reaching a waypoint.
4.
Press TRACK WAYPOINT on the autopilot trackpad.
• The track waypoint light turns on and a single beep sounds, indicating track waypoint mode is engaged.
NOTE: Two horn beeps sound if track waypoint mode does not engage.
