Powerhead
90-8M0065421 NOVEMBER 2012 Page 4A-41

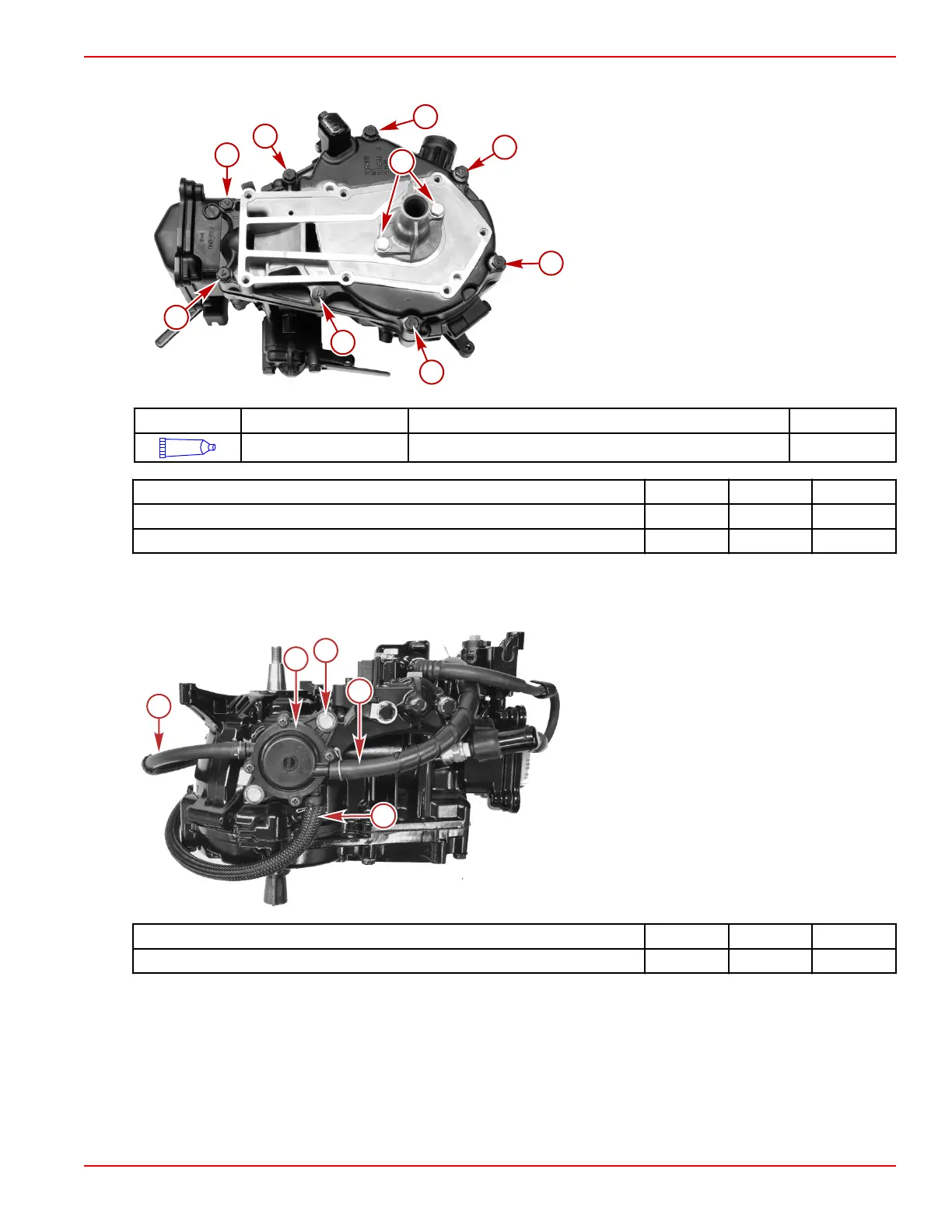

6. Secure the driveshaft seal housing to the oil pan with the two bolts. Tighten the bolts to the specified torque.
a - Driveshaft seal housing bolts (M6 x 20) (8)
Tube Ref No. Description Where Used Part No.
66
Loctite 242 Threadlocker Driveshaft seal housing bolts 92-809821
Description Nm lb‑in. lb‑ft
Oil pan/cylinder block bolts (M6 x 35) (8) 11 97
Driveshaft seal housing bolts (M6 x 20) (2) 6 53
7. Attach the hoses to the fuel pump. Secure the hoses with clamps.
8. Attach the fuel pump pulse hose to the intake manifold fitting. Secure the hose with a clamp.
9. Attach the fuel pump to the thermostat housing bracket. Tighten the bolts to the specified torque.
a - Fuel pump
b - Bolt (M6 x 30) (2)
c - Pulse hose
d - Hose from the fuel shutoff valve
e - Hose to the carburetor
Description Nm lb‑in. lb‑ft
Fuel pump mounting bolts (M6 x 30) (2) 6 53
10. Attach the oil sight gauge hose and secure with a hose clamp.
