Carburetor and Fuel Pump
Page 3A-12 90-8M0065421 NOVEMBER 2012

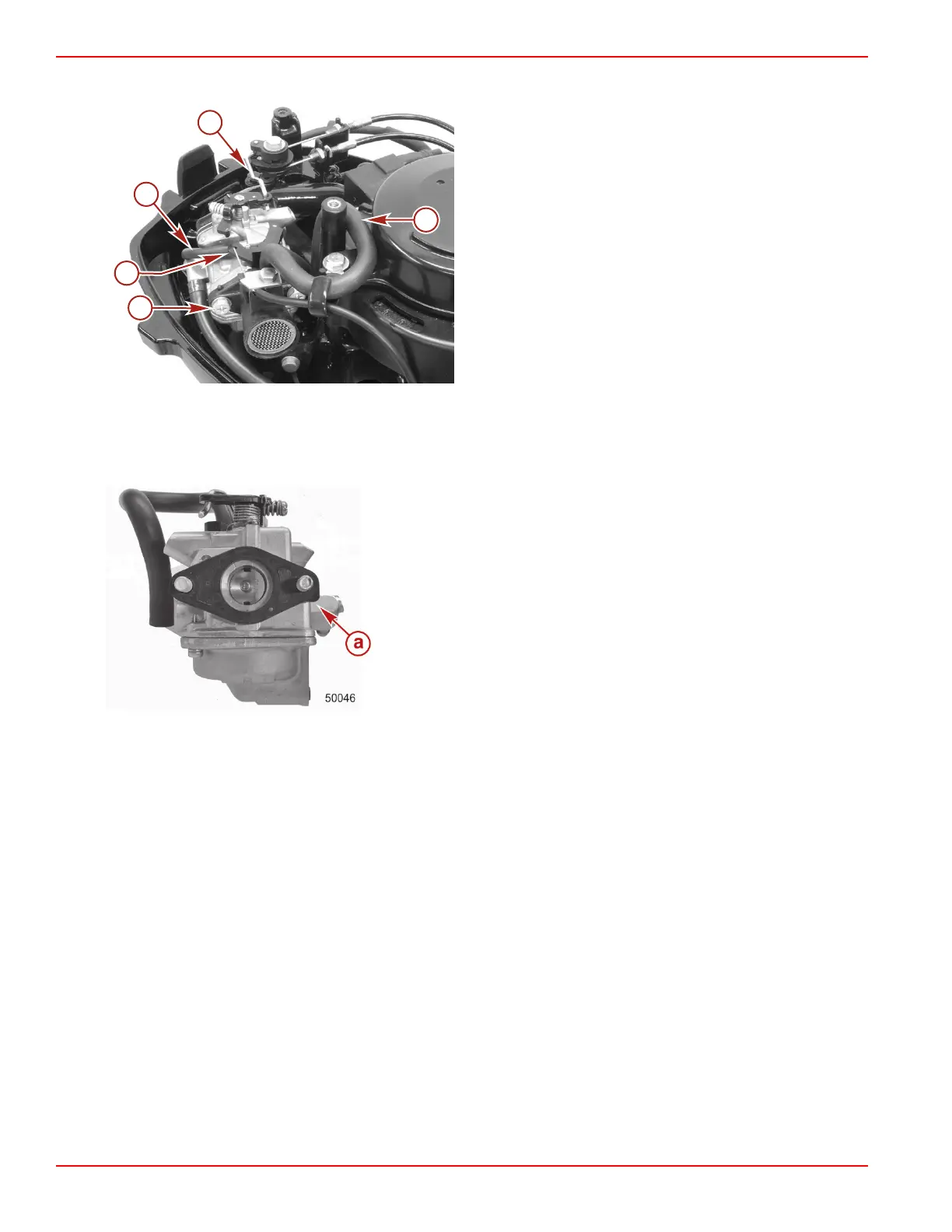

8. Disconnect the choke cable and the throttle linkage from the carburetor. Remove the carburetor from the engine.
a - Crankcase breather hose
b - Throttle linkage
c - Vent hose (1 of 2)
d - Choke cable
e - Carburetor/air silencer bolt (M6 x 85) (2)
Installation
1. Connect the choke cable and the throttle linkage to the carburetor.
IMPORTANT: The carburetor mounting gaskets must be oriented correctly with the intake manifold before installing the
carburetor. Improper orientation of the carburetor mounting gaskets will result in poor engine performance.
a - Orientation notch
2. Inspect the carburetor mounting gaskets for damage. Replace the gaskets as required.
