Mercury FourStroke 2.5 - Clamp Bracket Removal and Installation; Reassembly and Installation; Removal and Disassembly

Clamp/Swivel Bracket and Driveshaft Housing
Page 5A-10 90-8M0065421 NOVEMBER 2012
Clamp Bracket Removal and Installation
Removal and Disassembly

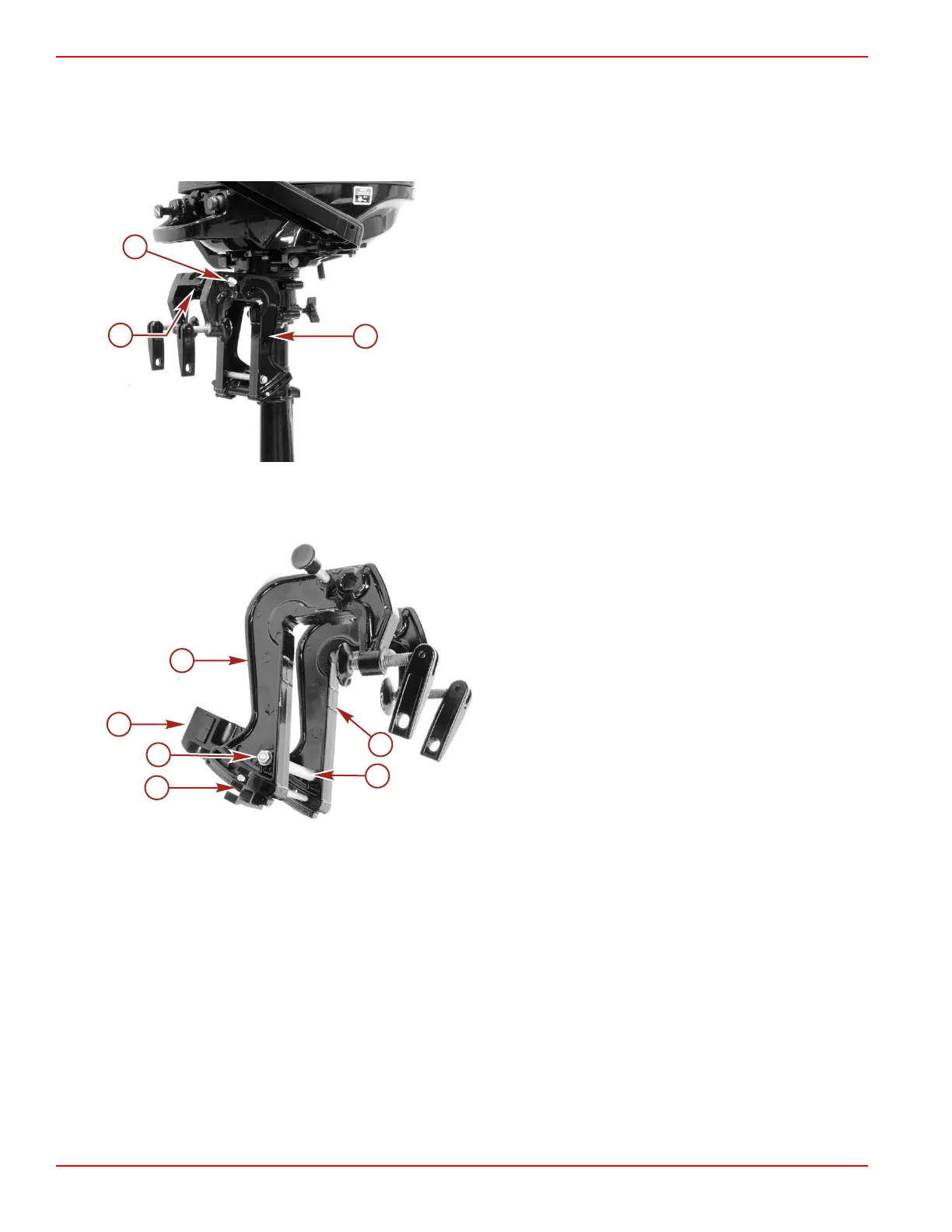

1. Remove the locknut on the port clamp bracket. Remove the bolt.
2. Remove the clamp brackets from the swivel bracket.
a - Port clamp bracket
b - Swivel bracket
c - Locknut
3. Remove the nut and washer from each end of the spacer rod.
4. Remove the tilt pin from the starboard clamp bracket.
5. Remove the thrust support and damper.
a - Port clamp bracket
b - Spacer rod
c - Tilt pin
d - Nut and washer (2 each)
e - Thrust support and damper
f - Starboard clamp bracket
Reassembly and Installation
1. Assemble the spacer rod to the starboard clamp bracket.
2. Secure the spacer rod with a washer and nut.
3. Install the tilt pin through the starboard clamp bracket.
26114
a
c
b
26118
a
c
d
f
e
b
