Mercury FourStroke 2.5 - 2;2.5;3.5 Fourstroke Starboard View

General Information
90-8M0065421 NOVEMBER 2012 Page 1C-3

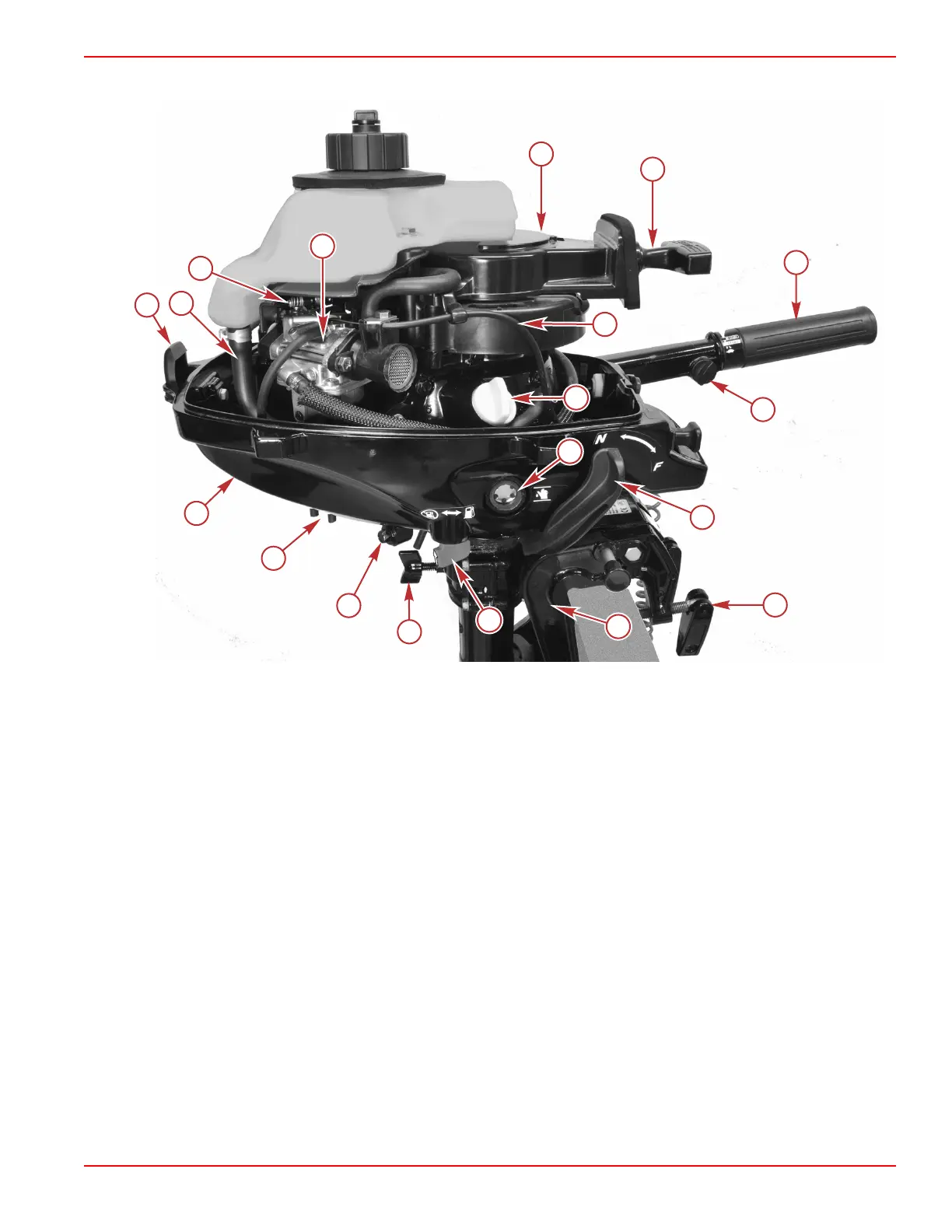

2/2.5/3.5 FourStroke Starboard View
a - Recoil starter
b - Recoil starter handle
c - Throttle grip
d - Throttle friction knob
e - Shift lever
f - Clamp handle
g - Clamp bracket
h - Choke cable
i - Oil fill cap
j - Oil level sight window
k - Fuel tank on/off valve
l - Steering friction knob
m - Oil drain plug
n - Carburetor vent hoses
o - Bottom cowl
p - Rear cowl latch
q - Fuel tank outlet hose
r - Idle speed screw
s - Carburetor
49955
