Powerhead
Page 4A-14 90-8M0065421 NOVEMBER 2012
Thermostat
Removal

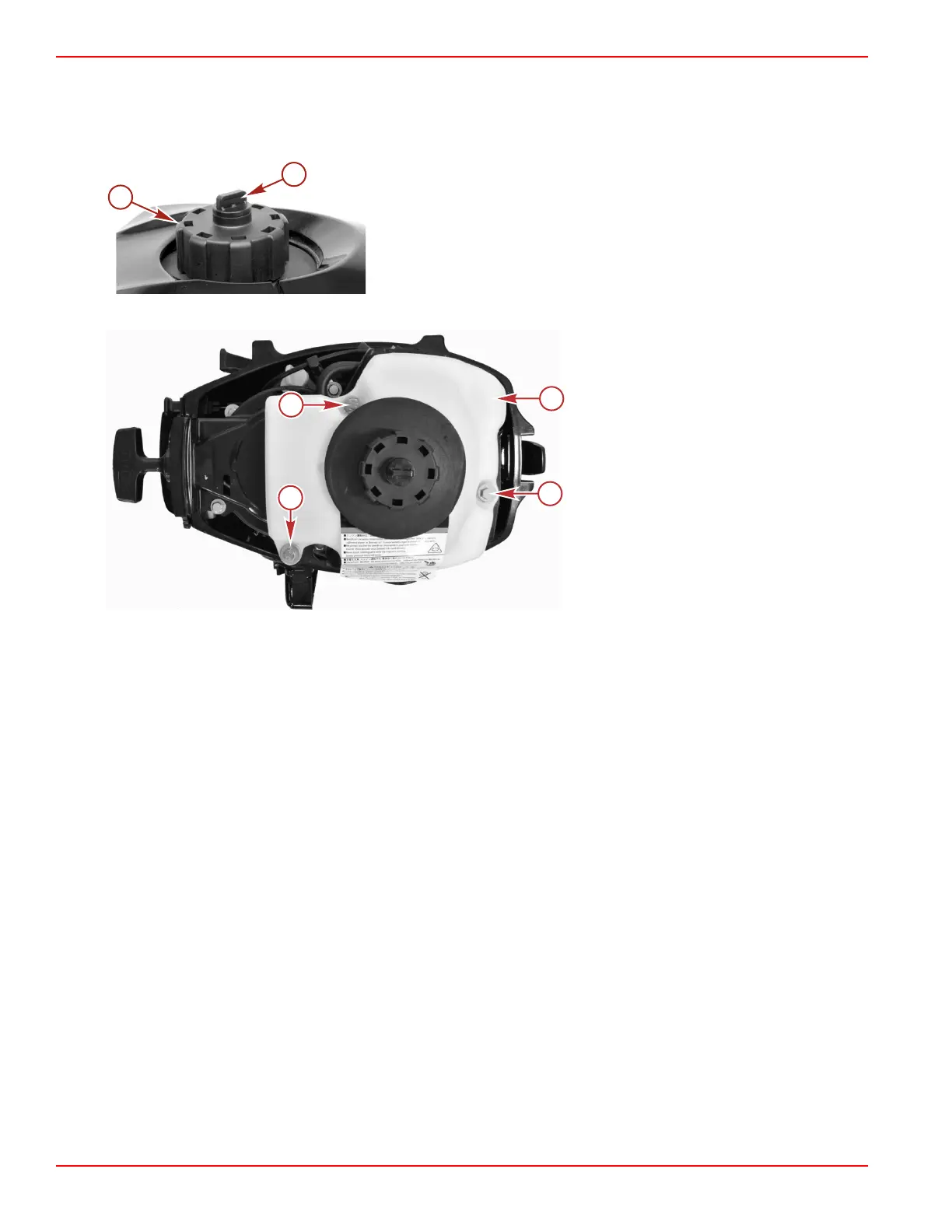

1. Close the manual vent screw on the fuel cap.
a - Fuel cap
b - Manual vent screw
2. Remove the three bolts securing the fuel tank and move the fuel tank to the side.
a - Fuel tank
b - Bolt (M6 x 25) and washer
3. Straighten the J‑clamp securing the throttle cables.
4. Remove the two M6 x 30 bolts securing the thermostat housing bracket to the cylinder block.
5. Remove the M6 x 60 bolt securing the recoil starter to the thermostat housing bracket.
6. Remove the fuel pump pulse hose at the intake manifold fitting.
