Recoil Starter
90-8M0065421 NOVEMBER 2012 Page 8A-11
6. Continue to hold the reel and slowly let the reel unwind, pulling the rope and handle into the housing.

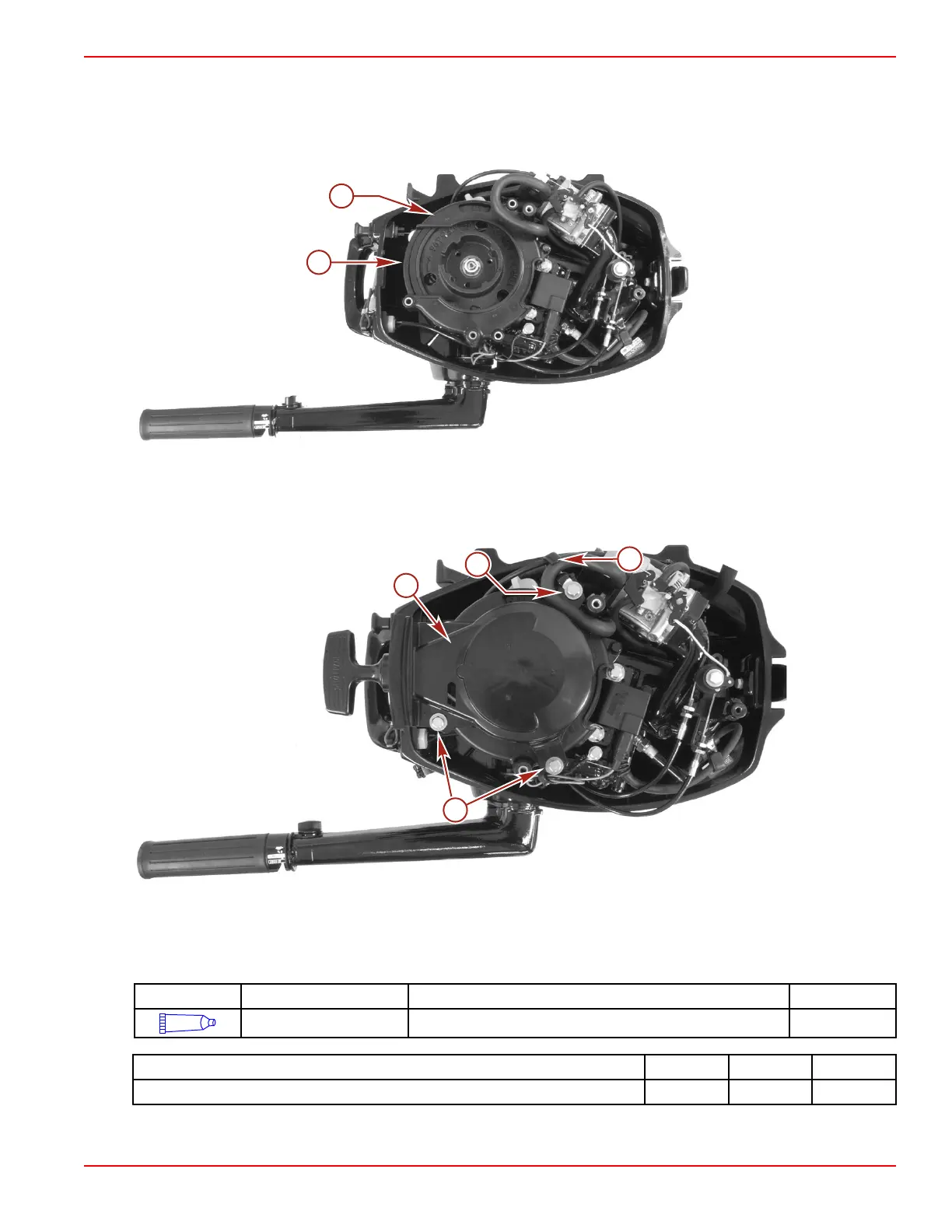

Recoil Starter Installation
1. Ensure the flywheel cover is in place.
a - Flywheel
b - Flywheel cover
2. Secure the fuel hose and choke cable with the J‑clamp.
3. Apply Loctite 242 Threadlocker to the recoil starter assembly mounting bolts.
4. Attach the recoil starter assembly onto the flywheel cover and secure with three bolts and washers.
5. Tighten the bolts to the specified torque.
a - Recoil starter assembly
b - Bolts and washers (M6 x 60) (3)
c - J‑clamp
Tube Ref No. Description Where Used Part No.
66
Loctite 242 Threadlocker Recoil starter assembly mounting bolts 92-809821
Description Nm lb‑in. lb‑ft
Recoil starter assembly mounting bolts (M6 x 60) (3) 6 53
6. Install the fuel tank assembly. Attach the fuel line to the fuel tank and secure it with a hose clamp.
