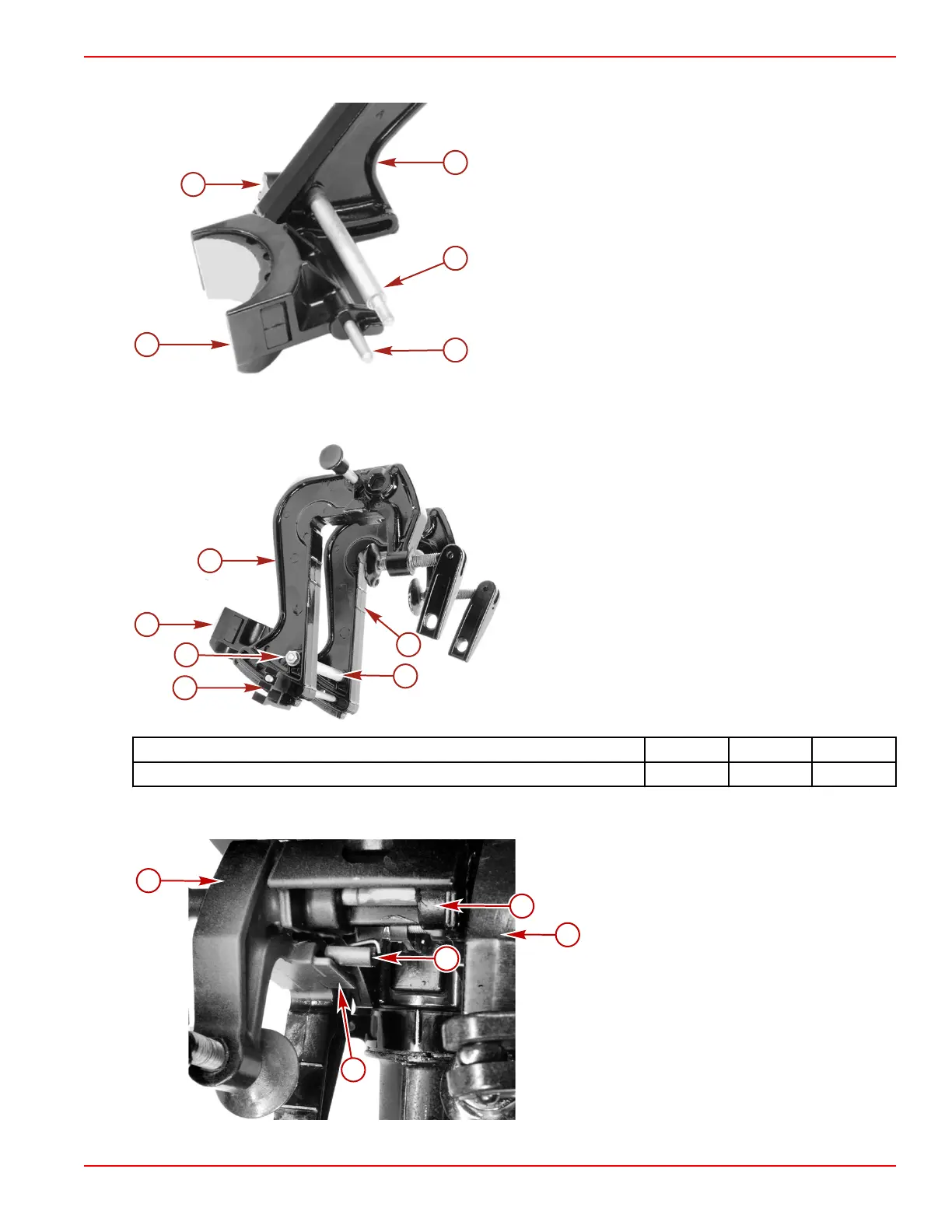

Clamp/Swivel Bracket and Driveshaft Housing
90-8M0065421 NOVEMBER 2012 Page 5A-11
4. Install the thrust support and damper onto the tilt pin.
a - Starboard clamp bracket
b - Spacer rod
c - Tilt pin
d - Thrust support and damper
5. Assemble the port clamp bracket to the starboard clamp bracket, spacer rod, and tilt pin.
6. Install a washer and nut to the spacer rod. Tighten the two nuts to the specified torque.
a - Port clamp bracket
b - Spacer rod
c - Tilt pin
d - Nut and washer (2 each)
e - Thrust support and damper
f - Starboard clamp bracket
Description Nm lb‑in. lb‑ft
Spacer rod nut (2) 6 53
7. Assemble the clamp brackets onto the swivel bracket.
8. Ensure that the steering stop arm is installed above the ledge on the starboard clamp bracket.
a - Starboard clamp bracket
b - Front swivel bracket
c - Port clamp bracket
d - Steering stop arm
e - Ledge
9. Install a washer between each clamp bracket and the front swivel bracket.
26121
a
b
c
d
c
26118
a
c
d
f
e
b
a
b
c
d
e
26194
