Carburetor and Fuel Pump
90-8M0065421 NOVEMBER 2012 Page 3A-13

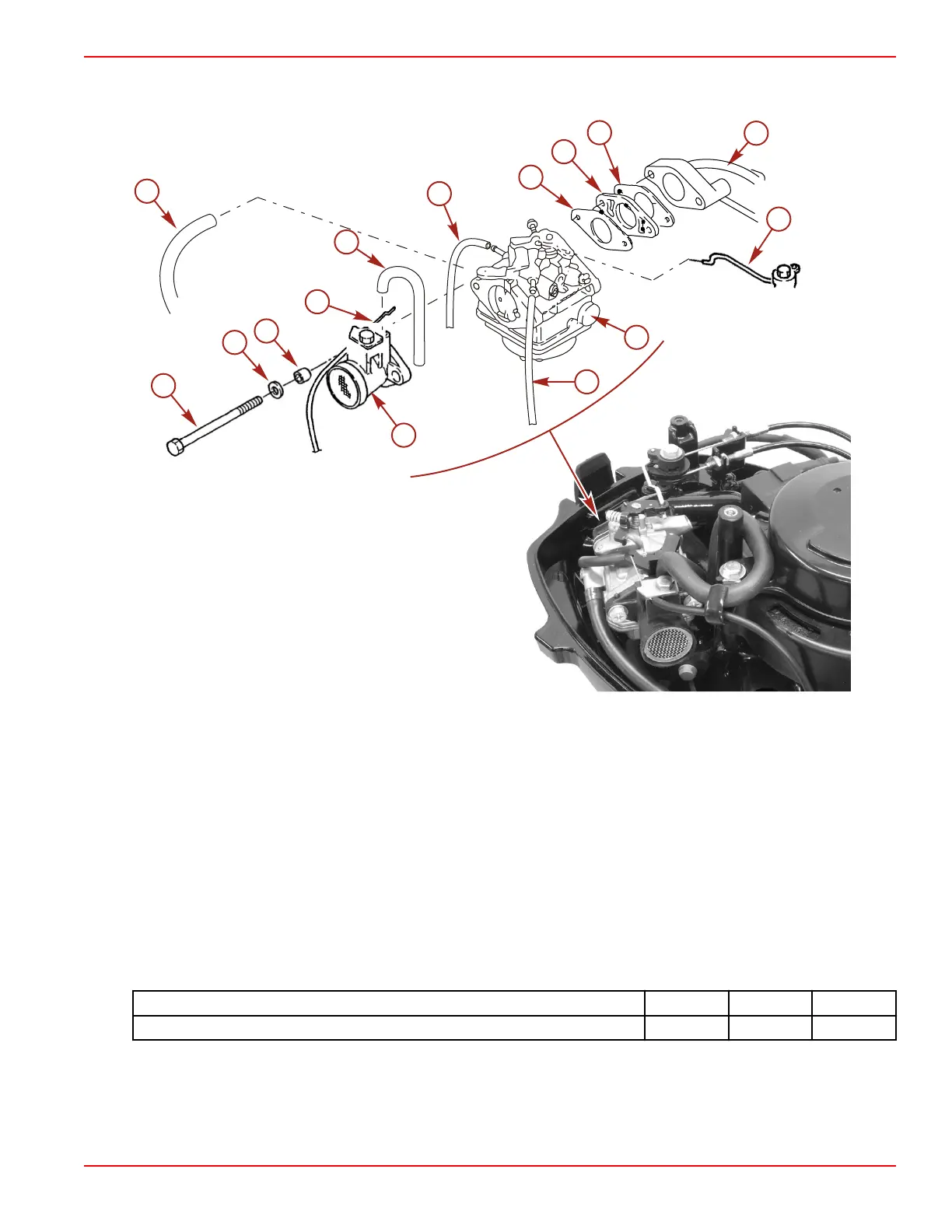

3. Secure the air silencer and carburetor to the intake manifold with two bolts, washers, and collars. Tighten the bolts to the
specified torque.
a - Fuel hose
b - Crankcase breather hose
c - Bolt (M6 x 85) (2)
d - Flat washer (2)
e - Collar (2)
f - Choke cable
g - Air silencer
h - Carburetor
i - Vent hose (2)
j - Gasket (2)
k - Insulator
l - Intake manifold
m - Throttle linkage
Description
Nm lb‑in. lb‑ft
Carburetor/air silencer bolt (M6 x 85) (2) 6 53
4. Install the crankcase breather hose. Secure the hose with a clamp.
5. Install the vent hoses into the pan.
6. Adjust the choke cable in the cable holder so the choke is fully functional.
