Ignition

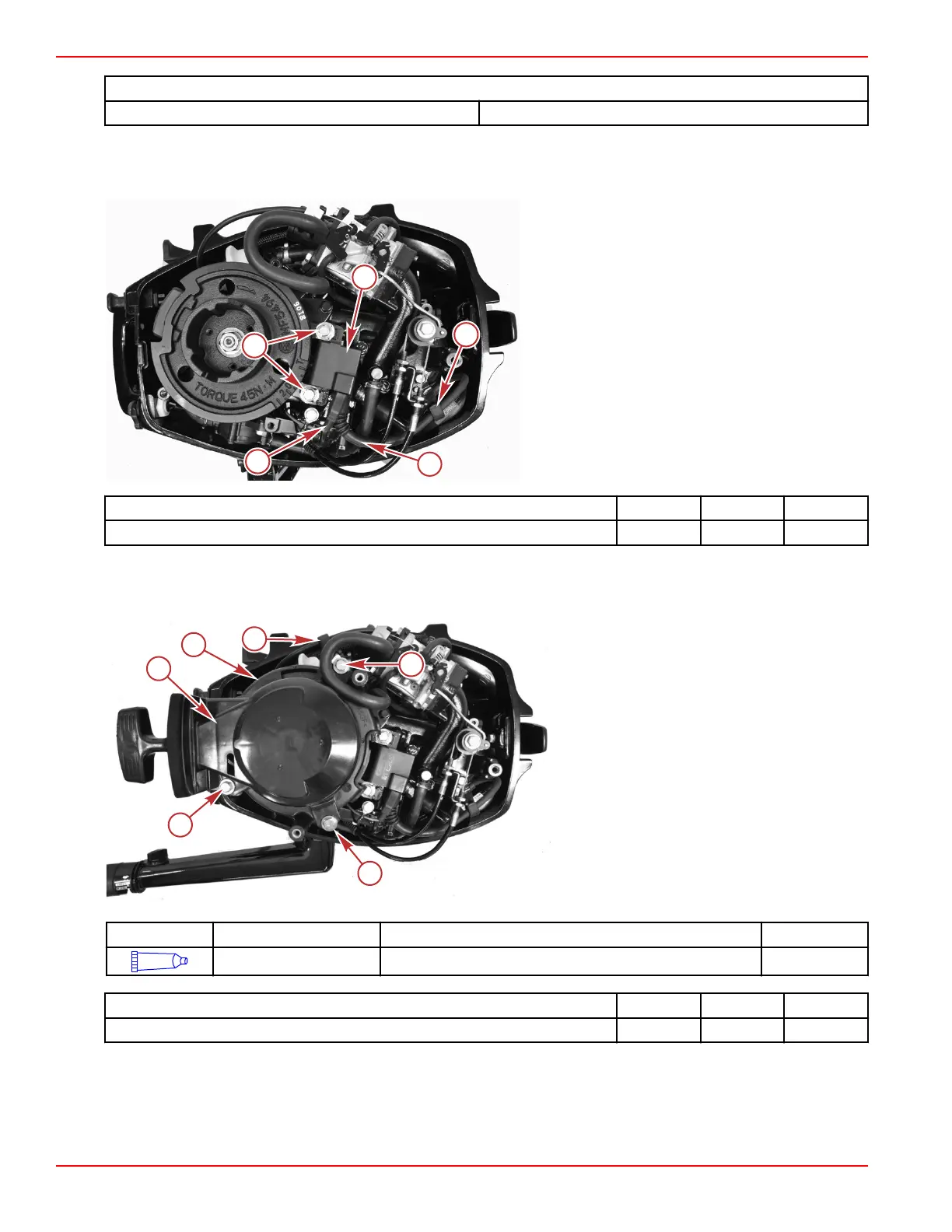

Page 2A-10 90-8M0065421 NOVEMBER 2012
Ignition Specification
Ignition coil gap 0.3 mm (0.012 in.)
4. Tighten the two ignition coil mounting bolts to the specified torque.
5. Install the spark plug lead onto the spark plug and secure with the J‑clamp.
6. Connect the stop switch tan wire connector.
a - Ignition coil mounting bolts (M6 x 20) (2)
b - Ignition coil
c - J‑clamp
d - Spark plug lead
e - Tan wire connector
Description Nm lb‑in. lb‑ft
Ignition coil mounting bolts (M6 x 20) (2) 6 53
7.
8. Apply Loctite 242 Threadlocker to the recoil starter assembly mounting bolts.
9. Install the recoil starter and flywheel cover. Tighten the bolts to the specified torque.
a - Recoil starter
b - Flywheel cover
c - J‑clip
d - Bolt and washer (M6 x 60) (3)
Tube Ref No. Description Where Used Part No.
66
Loctite 242 Threadlocker Recoil starter assembly mounting bolts 92-809821
Description Nm lb‑in. lb‑ft
Recoil starter assembly mounting bolts (M6 x 60) (3) 6 53
10. Install the fuel tank assembly.
50000
a
b
c
d
e
c
d
d
d
a
b
49999
