Carburetor and Fuel Pump
Page 3A-18 90-8M0065421 NOVEMBER 2012

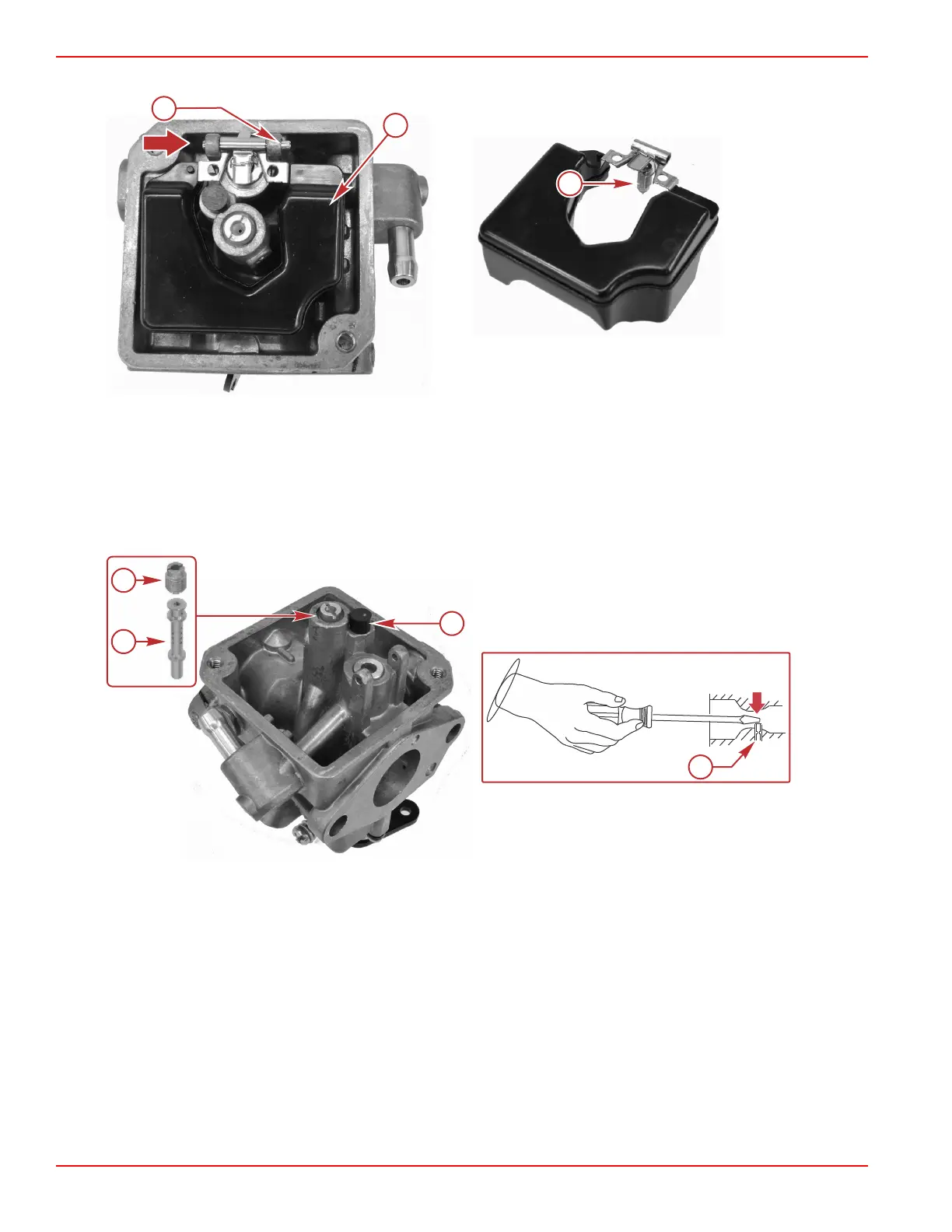

5. Push out the float pin in the direction shown. Remove the float and the inlet needle.
a - Knurled end of the float pin
b - Float
c - Inlet needle
6. Remove the rubber plug.
7. Remove the main jet.
8. Remove the main nozzle. The nozzle should drop out. If not, carefully push the nozzle out as shown.
a - Main jet
b - Main nozzle
c - Rubber plug
50773
a
b
c
50774
a
b
c
b
