Mercury FourStroke 3.5 User Manual

Carburetor and Fuel Pump
Page 3A-14 90-8M0065421 NOVEMBER 2012

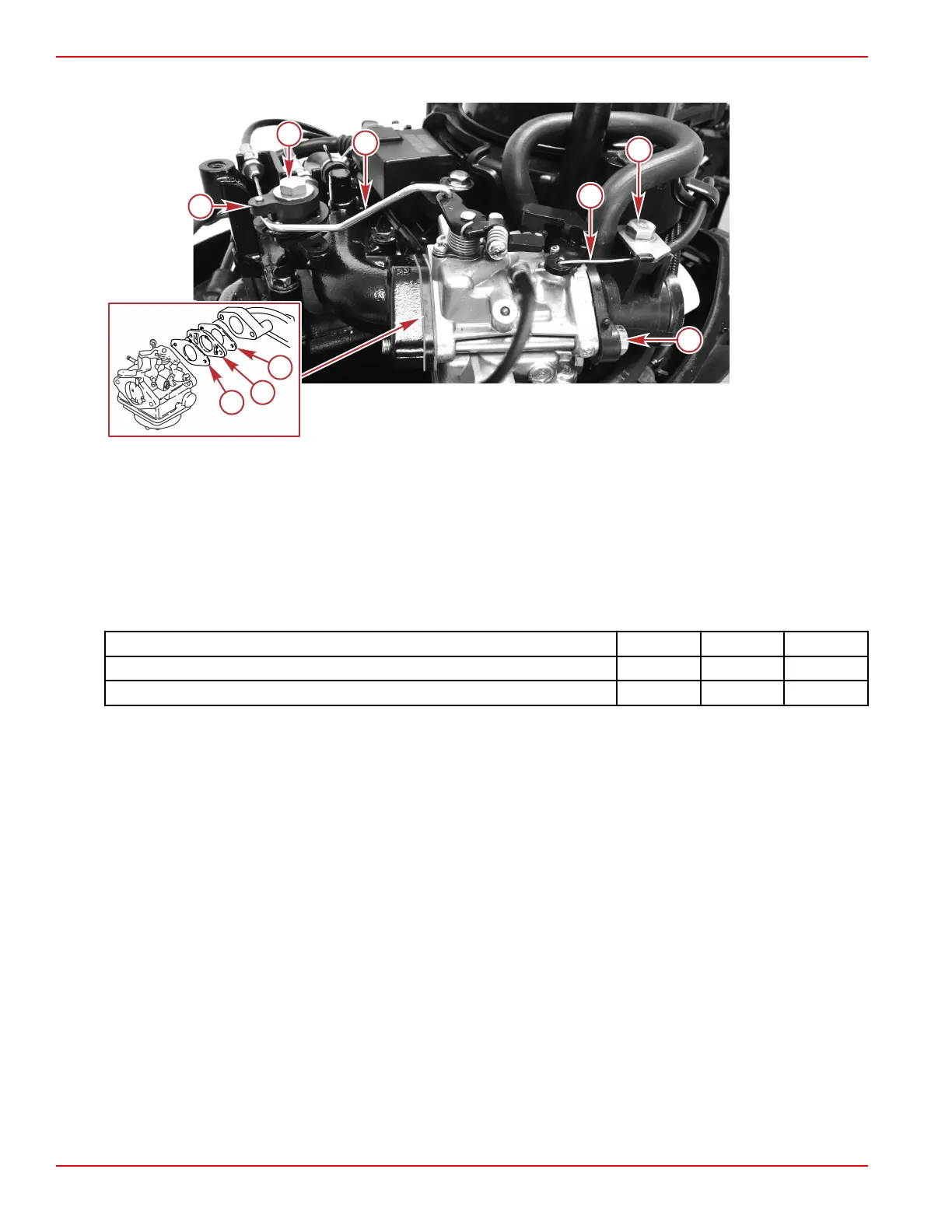

7. Tighten the choke cable holder bolt and the throttle opener bolt to the specified torque.
a - Throttle opener
b - Throttle opener bolt
c - Throttle rod
d - Choke wire
e - Choke cable holder bolt
f - Carburetor mounting bolt (2)
g - Gasket (2)
h - Insulator
Description Nm lb‑in. lb‑ft
Throttle opener bolt 6 53
Choke cable holder bolt 6 53
8. Attach the fuel pump outlet hose to the carburetor inlet.
9. Attach the fuel pump inlet hose to fuel shutoff valve. Secure the hoses with hose clamps.
IMPORTANT: Route the hoses as shown.
10. Install the fuel shutoff valve and hoses along the side of the powerhead.
• Align the fuel shutoff valve with the fuel shutoff knob
• The fuel hose to the fuel tank snaps into the bracket attached to the cylinder block
49876
a
b
c
d
e
f
g
h
g
